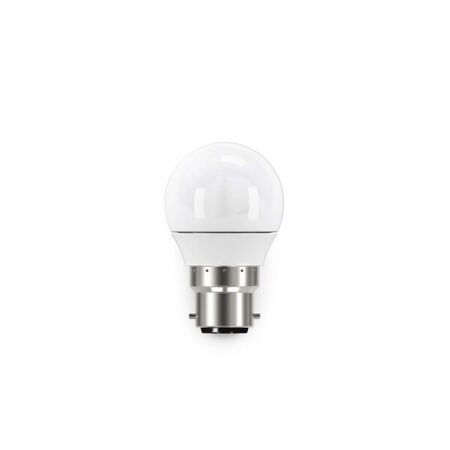

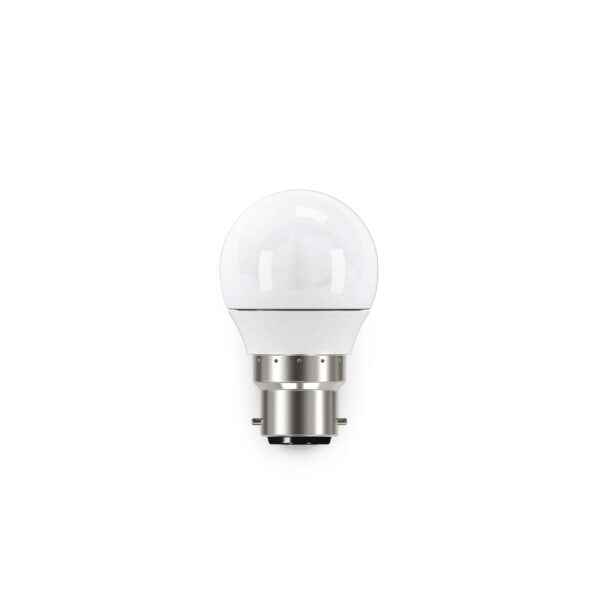

5W Fancy Round LED Lamp B22 | Dimmable | Warm White | 220° Beam Angle | by atom

BRAND: Atom
SKU: AT9422/BC/WW
$5.90 List price: $7.10
+
The 5W Fancy Round LED Lamp B22 offers a warm white glow with a color temperature of 3000K, perfect for creating a cozy atmosphere in any space. With a dimmable phase cut driver and a wide beam angle of 220°, this lamp is ideal for residential and commercial indoor lighting. Enjoy energy efficiency and a long LED lifetime of 15,000 hours, making it a smart choice for your lighting needs.

Alternatively Known As: 5W LED Globe B22 Warm White, Dimmable LED Bulb B22, Fancy Round LED Lamp B22, Warm White LED Globe

Technical Specifications
  • Power: 5 W
  • Input Voltage: 230Vac (216-253V range)
  • Power Factor: 0.55
  • Color Rendering Index (CRI): >80
  • Color Temperature: 3000K (Warm White)
  • LED Package: 2835
  • Beam Angle: 220°
  • LED Lifetime: 15,000 hours
  • IP Rating: IP20
  • Diffuser Material: Polycarbonate
  • Fitting Colour: White
  • Switch Type: Inline
  • Operating Temperature Range: -20 to 40 °C
  • Driver Type: Integrated dimmable phase cut driver
  • Dimensions (H x L x W): 70mm x 45mm x 45mm
  • Weight: 0.1 kg
Key Features
  • 5W power consumption with dimmable phase cut driver
  • Warm white color temperature (3000K)
  • High total system efficiency up to 106 lm/W
  • Frosted polycarbonate diffuser for soft light
  • Fixed adjustability with IP20 rating
  • Integrated LED driver included
  • Long LED lifetime of 15,000 hours
  • Beam angle of 220° for wide light distribution
  • Compatible with B22 bayonet cap fitting
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper fitting and compliance with electrical standards.
Applications
  • Residential lighting
  • Commercial indoor lighting
  • Decorative and ambient lighting
Standards & Compliance
  • Complies with AS/NZS 62560 for self-ballasted LED lamps
  • Complies with AS/NZS 3112 for plugs and socket-outlets (Type I Plug)
Environmental Benefits
  • Energy-efficient LED technology reduces electricity consumption
  • Long product design life of 10 years reduces waste
  • Dimmable feature allows for energy savings and extended lamp life
Warranty Information

2 years return to base warranty for VIP registered users, 1 year return to base warranty for domestic use, warranty valid up to 500 operating hours.

Available Now

The Atom 5W Fancy Round LED Lamp B22 Warm White Dimmable is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
