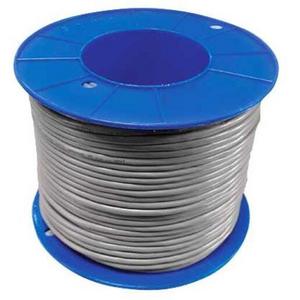

6 Core Overall Screened Data Cable | Tinned Copper Conductor | PVC Insulation | by Electra Cables
The 6 Core Overall Screened Data Cable features a tinned copper conductor and durable PVC insulation, making it ideal for internal and external interconnections of electronic apparatus. With its overall screening and compliance with AS/NZS standards, this cable ensures reliable performance for computer systems, intercoms, and alarm systems in both residential and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 6 Core Screened Data Cable, Multi Core Data Cable, Tinned Copper Data Cable, PVC Insulated Data Cable
Technical Specifications
- Conductor: Tinned Copper
- Conductor size: 0.22mm (7 strands of 0.20mm)
- Number of cores: 6
- Insulation: PVC V75, 0.3mm thickness
- Screen: Aluminium tape with polyester mylar tape and 7/0.20mm tinned copper drain wire
- Sheath: PVC V75
- Voltage rating: 100V DC or 32V AC
- Standards: AS1125 (conductor), AS/NZS 3808 (PVC)
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
Key Features
- Overall screened multi-core cable
- Tinned copper conductor for corrosion resistance
- PVC V75 insulation and sheath for durability
- Aluminium tape screen with polyester mylar tape and tinned copper drain wire
- Voltage rating: 100V DC or 32V AC
- Must not be connected to mains power supplies
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with low voltage data cabling and safety standards. Must not be connected to mains power supplies.
Applications
- Internal and external inter-connections of electronic apparatus
- Computer systems
- Intercoms
- Telemetering
- Signalling and alarm systems
Standards & Compliance
- AS/NZS 3808 – PVC Insulation and Sheath for Cables
Environmental Benefits
- PVC insulation and sheath are recyclable
- Tinned copper conductors improve longevity reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for details.
Available Now
Electra Cables 6 Core Overall Screened Data Cable is available for immediate purchase, ideal for electronic interconnection applications in residential and commercial settings.
