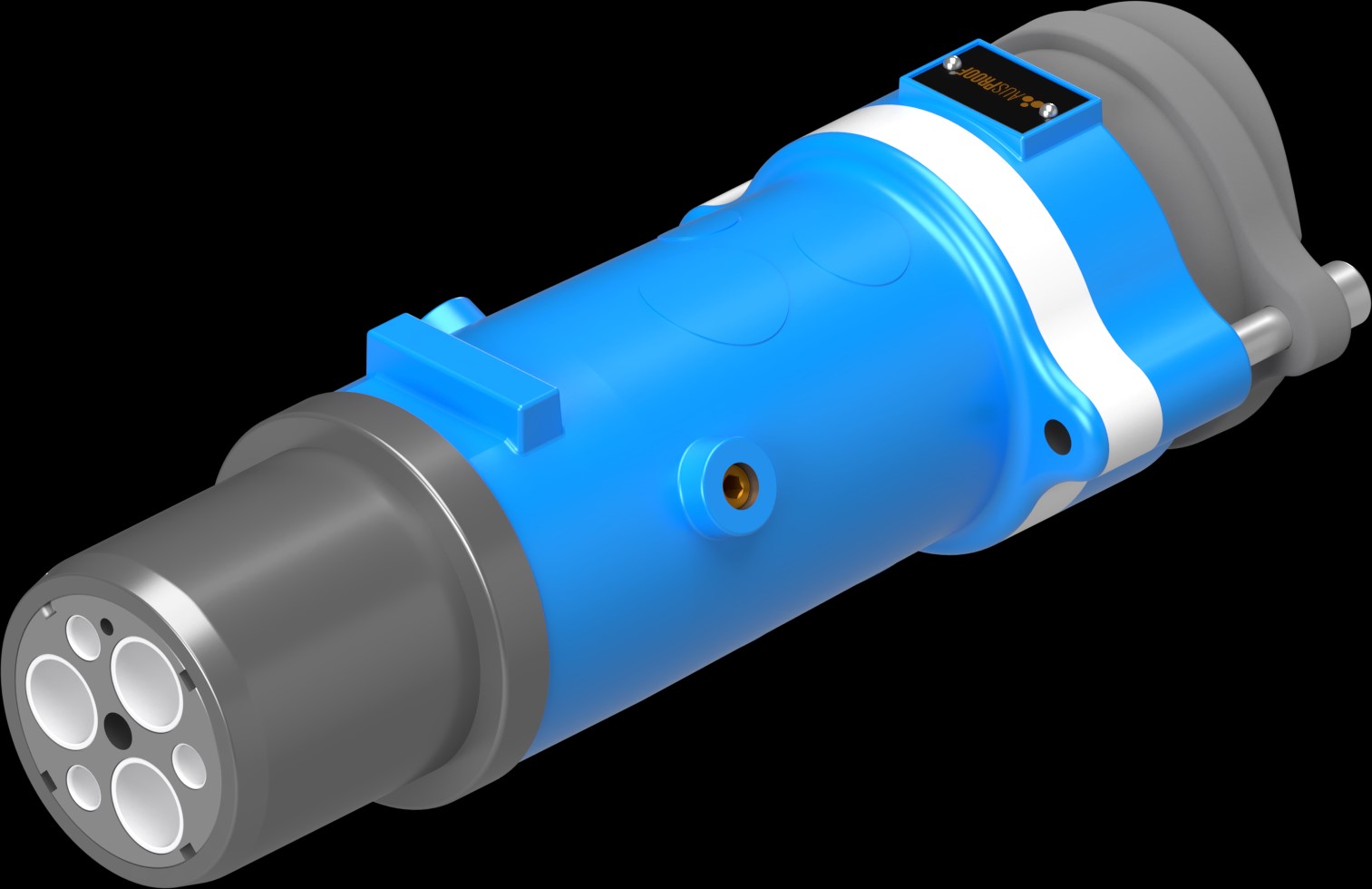

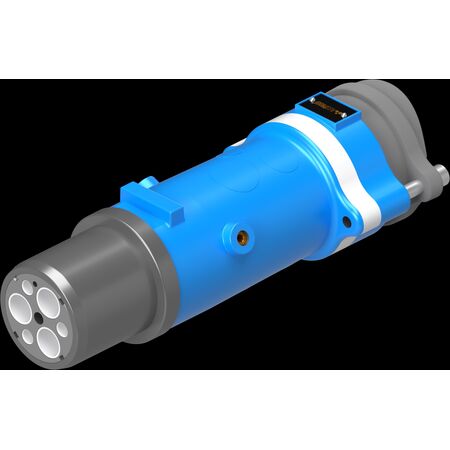

6 Pin Flameproof Industrial Plug | 425A Current Rating | IP55 Ingress Protection | Stainless Steel by Ausproof
The 6 Pin Flameproof Industrial Plug is designed for hazardous environments, featuring a 425A current rating and IP55 ingress protection. Ideal for mining and tunnelling operations, it ensures safe and reliable electrical connections with quick release mechanism and durable stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 1100V 425A 6 Pin Plug (0) 35-C 40-45-G (241.1)
Brand: Ausproof
SKU: RS1504
Alternatively Known As: Ex-certified 6 Pin Plug, Flameproof Industrial Plug, Mining Electrical Plug, Hazardous Area Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: 9.0 kg
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 9.0 kg
Key Features
- Quick Release mechanism
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Mining and tunnelling operations
- Commercial applications in Group 1 hazardous environments
- Industrial low voltage electrical connections requiring flameproof plugs
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair reduces waste and resource consumption
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PL 1100V 425A 6 Pin Plug is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
