Home/Electrical/Conduit/6 Pin Industrial Plug 300A | IP55 Rated | Quick Release & Flameproof Design | Stainless Steel by Ausproof

Trade Discount 19%

PL 3300V 300A 6 Pin Plug (270) 70-C 55-60-G (241.3)

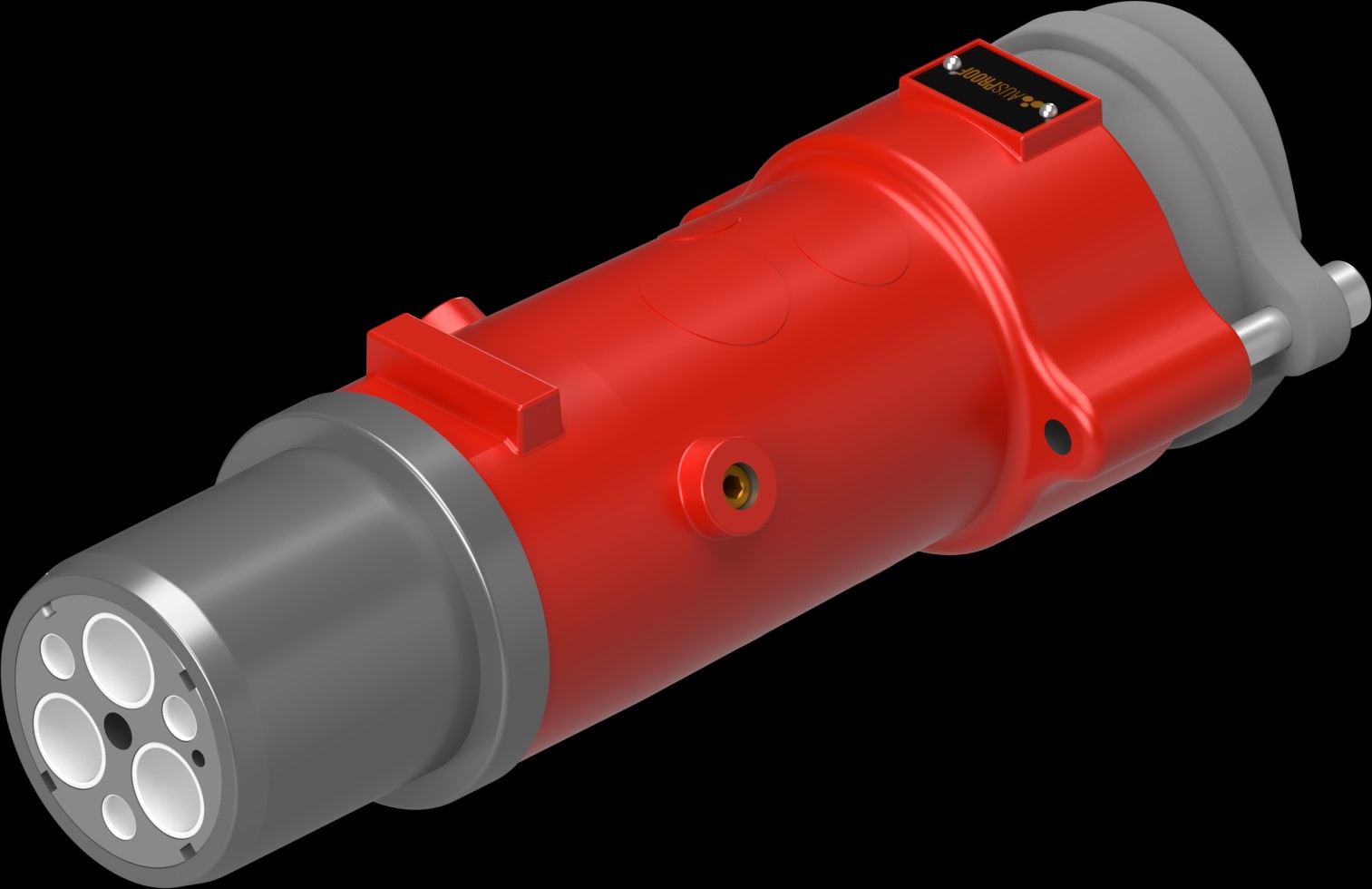

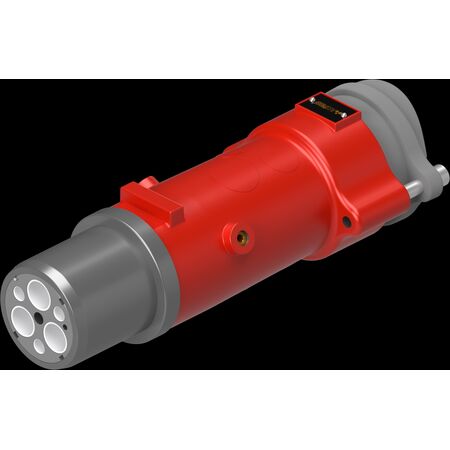

6 Pin Industrial Plug 300A | IP55 Rated | Quick Release & Flameproof Design | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS1542

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

The 6 Pin Industrial Plug with a 300A current rating and IP55 ingress protection is ideal for mining and tunnelling operations. Built for hazardous environments, it features a quick release mechanism and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL 3300V 300A 6 Pin Plug (270) 70-C 55-60-G (241.3)

Brand: Ausproof

SKU: RS1542

Alternatively Known As: Ex-certified 6 Pin Industrial Plug, Heavy Duty Mining Plug, Flameproof Electrical Plug, Stainless Steel 300A Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 200mm x 250mm x 150mm
Weight: 9.0 kg

Key Features

Quick Release mechanism for ease of use
Single piece contacts to prevent hot joints
Easy termination and flameproof repair
Full solid earth connectivity throughout the product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover included
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified electricians trained in hazardous area equipment is required to ensure safety and compliance.

Applications

Mining and tunnelling operations
Commercial electrical installations
Group 1 hazardous environments requiring Ex-certified equipment

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof repairable design minimizes waste by allowing on-site body casting replacement

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL 3300V 300A 6 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and certified electrical connections.
