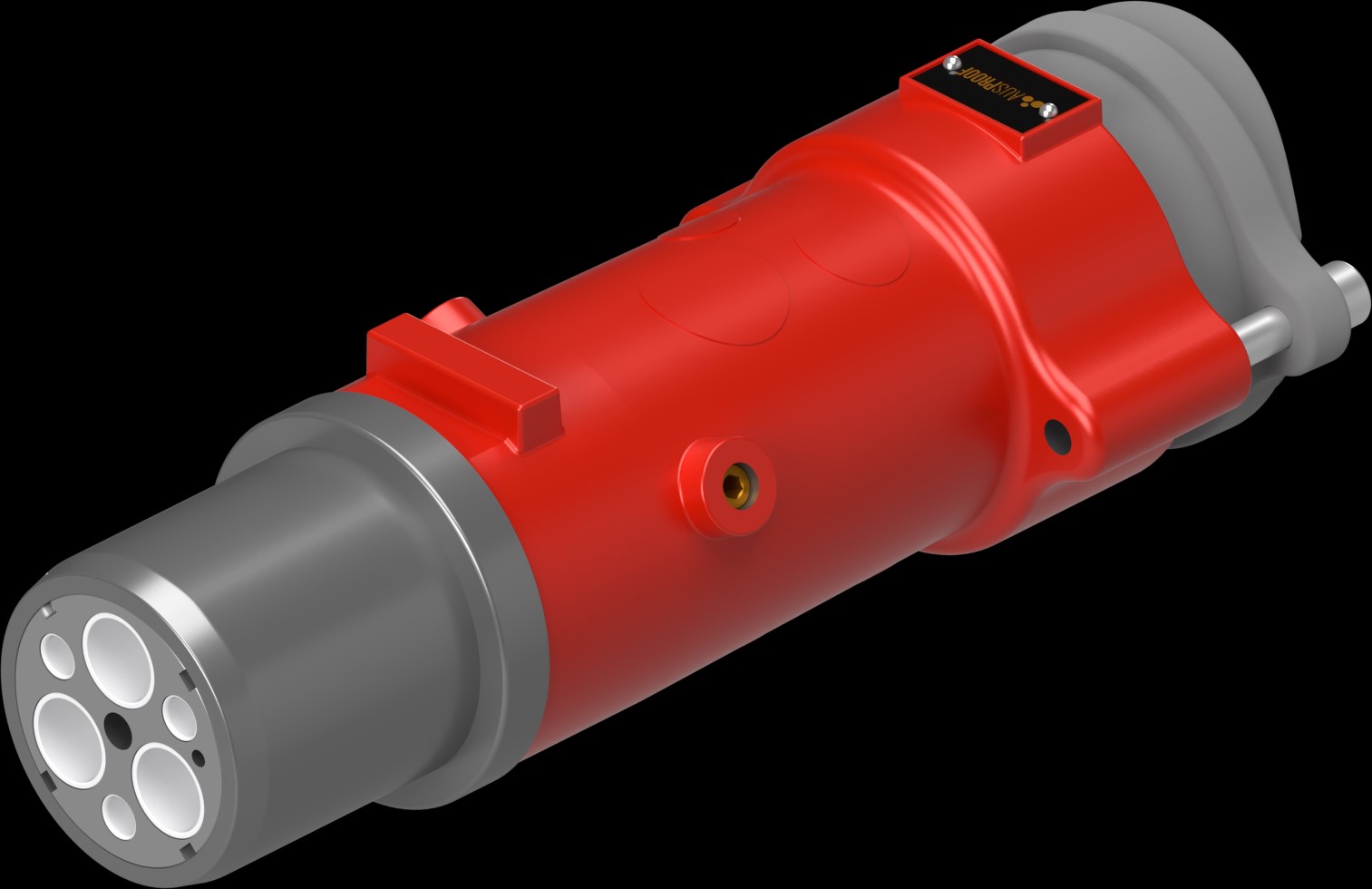

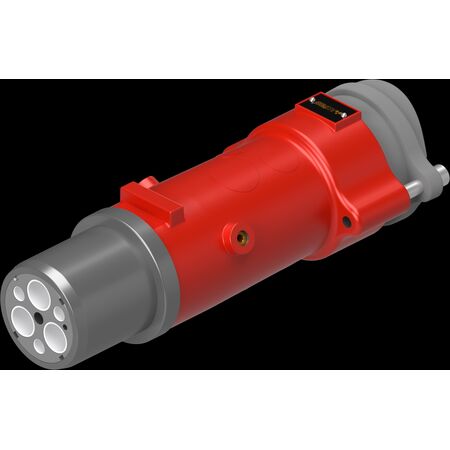

6 Pin Plug 300A | 660V to 3300V | IP55 Ingress Protection | Flameproof by Ausproof
The 6 Pin Plug with a 300A current rating and voltage range of 660V to 3300V is ideal for mining and tunnelling operations. Built for hazardous environments, it features a quick release mechanism and durable stainless steel construction for enhanced safety and ease of use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 300A 6 Pin Plug (270) 25-C 45-50-G (241.3)
Brand: Ausproof
SKU: RS1539
Alternatively Known As: Ex-rated 6 Pin Plug, Flameproof Industrial Plug, Mining Power Plug, Heavy Duty Electrical Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 9.0 kg
Key Features
- Quick Release mechanism for ease of use
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with Ex-rated equipment and hazardous area installations.
Applications
- Mining and tunnelling operations
- Commercial applications in hazardous Group 1 environments
- Industrial low voltage power connections requiring flameproof equipment
Standards & Compliance
- Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair reduces waste and downtime
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PL 3300V 300A 6 Pin Plug is available for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
