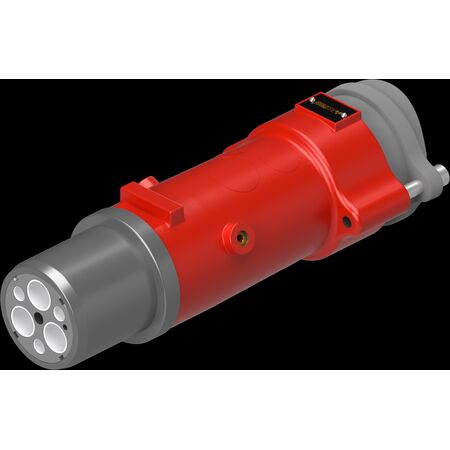

6-Pin Plug 300A IP55 Quick-Release Flameproof Heavy-Duty Ausproof

BRAND: Ausproof
SKU: RS2203
$1,611.50 List price: $2,001.50
+ −
30 Days Return Electricians Unlock Trade Access
The Heavy Duty 6 Pin Plug 300A is designed for high voltage applications, featuring IP55 ingress protection and quick release functionality.
Technical Specifications
  • Voltage Range: 660V to 3300V
  • Current Rating: 300A to 425A
  • Material: Stainless Steel
  • Ingress Protection: IP55
  • Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
  • Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
  • AC High Voltage Withstand (Phase): 8.6kV for one minute
  • AC High Voltage Withstand (Pilot): 1.0kV for one minute
  • Temperature Rise: Rated for 300A and 425A
  • Plug Weight: 9.0 kg
  • Dimensions (H x L x W): 300mm x 250mm x 200mm
  • Weight: 9.0 kg
Key Features
  • Quick Release
  • Single piece contacts to prevent hot joints
  • Easy termination
  • Easy flameproof repair
  • Full solid earth connectivity throughout product
  • Full phase to phase segregation with earth
  • Lightest Ex product on the market
  • Silicone Protection Cover
  • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
  • Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.
Applications
  • Mining
  • Tunnelling
  • Commercial applications
  • Group 1 hazardous environments
Standards & Compliance
  • Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
  • Durable stainless steel construction reduces waste by extending product life
  • Easy on-site repair reduces need for full replacements, minimizing material waste
Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 3300V 300A 6P Plug is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial applications.
