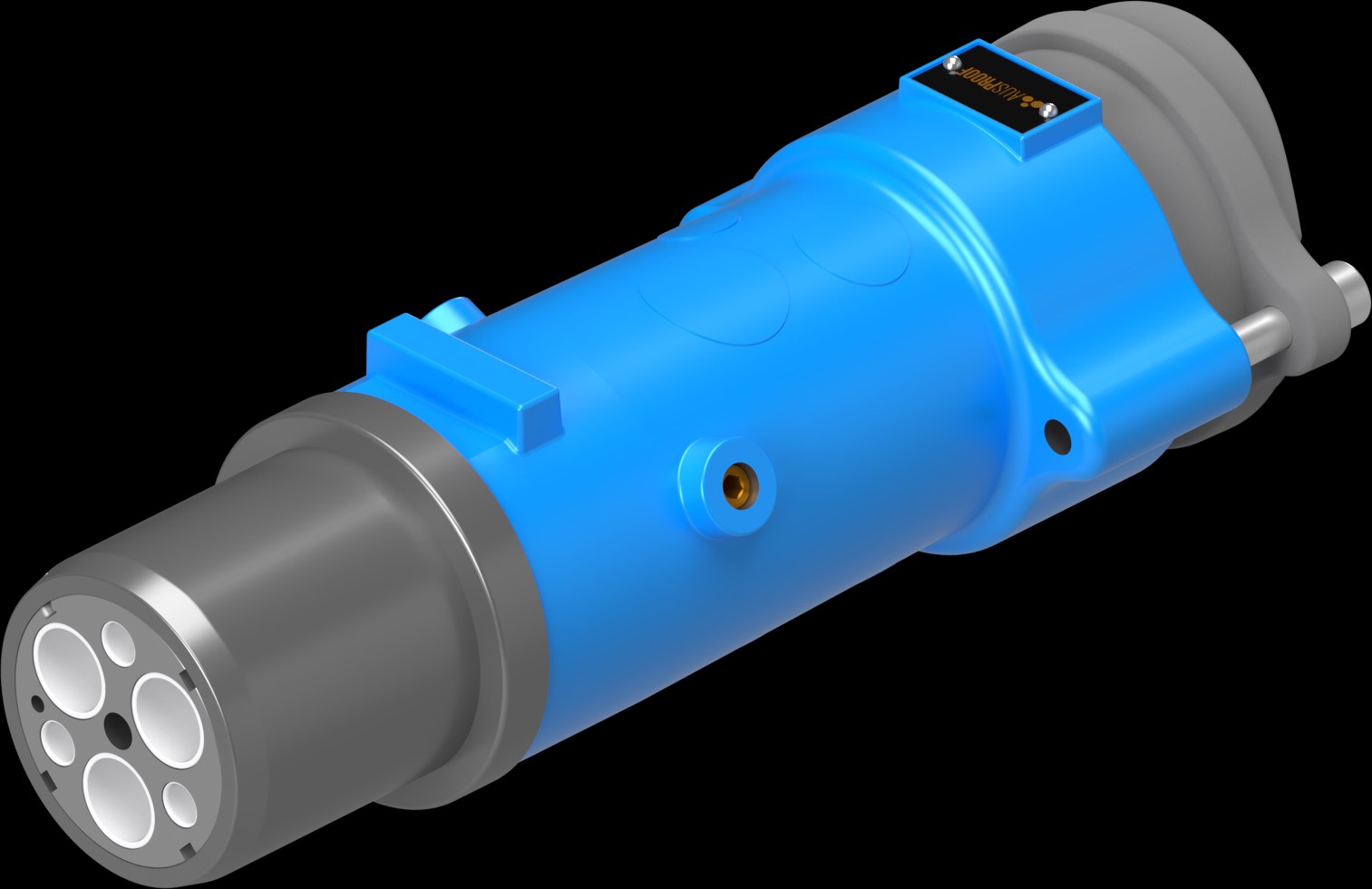

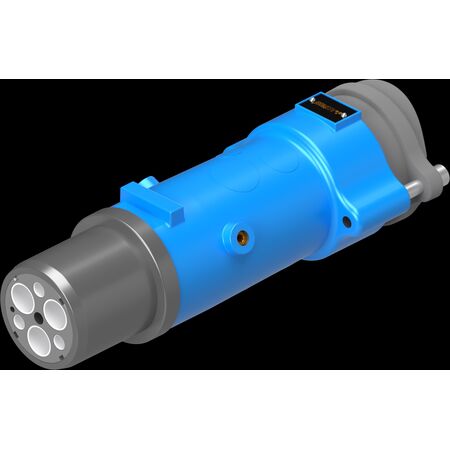

6 Pin Plug 300A | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof
SKU: RS1466
$1,611.50 List price: $2,001.50
+ −
30 Days Return Delivery Options
The 6 Pin Plug with a 300A current rating and IP55 ingress protection is ideal for mining and hazardous environments. Built for safety and durability, it features quick release and stainless steel construction for easy installation and maintenance.

Product Name/Title: PL 1100V 300A 6 Pin Plug (90) 16-C 35-40-G (241.1)

Brand: Ausproof

SKU: RS1466

Alternatively Known As: Ex-certified 6 Pin Plug, Mining Plug, Flameproof Plug, High Voltage Industrial Plug

Technical Specifications
  • Voltage Range: 660V to 3300V
  • Current Rating: 300A to 425A
  • Material: Stainless Steel
  • Ingress Protection: IP55
  • Through Fault Current (Phase): 2 Tests of 25.0kA for 0.2 seconds
  • Through Fault Current (Earth): 2 Tests of 8.0kA for 0.2 seconds
  • AC HV Withstand (Phase): 8.6kV for one minute
  • AC HV Withstand (Pilot): 1.0kV for one minute
  • Temperature Rise: Rated for 300A and 425A
  • Weight: 9.0 kg (Plug), 10.7 kg (Receptacle)
  • Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
  • Dimensions (H x L x W): 150mm x 250mm x 200mm
  • Weight: 9.0 kg
Key Features
  • Quick Release
  • Single piece contacts to prevent hot joints
  • Easy termination
  • Easy flameproof repair
  • Full solid earth connectivity throughout product
  • Full phase to phase segregation with earth
  • Lightest Ex product on the market
  • Silicone Protection Cover
  • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
  • Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
  • Mining
  • Tunnelling
  • Commercial applications
  • Group 1 hazardous environments
Standards & Compliance
  • Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
  • Durable stainless steel construction reduces need for frequent replacements.
  • Easy on-site repair reduces waste and downtime.
Warranty Information

Warranty details available upon request from Ausproof, typically covering manufacturing defects.

Available Now

The Ausproof PL 1100V 300A 6 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
