Making Trade Life Easy!

Home/Electrical/Industrial/Industrial Outlets/6 Pin Plug 300A | IP55 Rated | Quick Release & Stainless Steel | Ausproof

Trade Discount 19%

PL 1100V 300A 6 Pin Plug (90) 120-C 60-65-G (241.1)

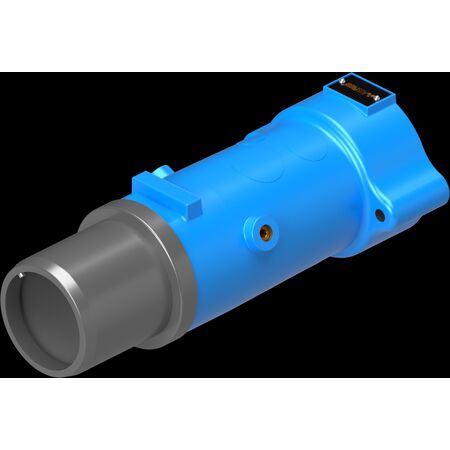

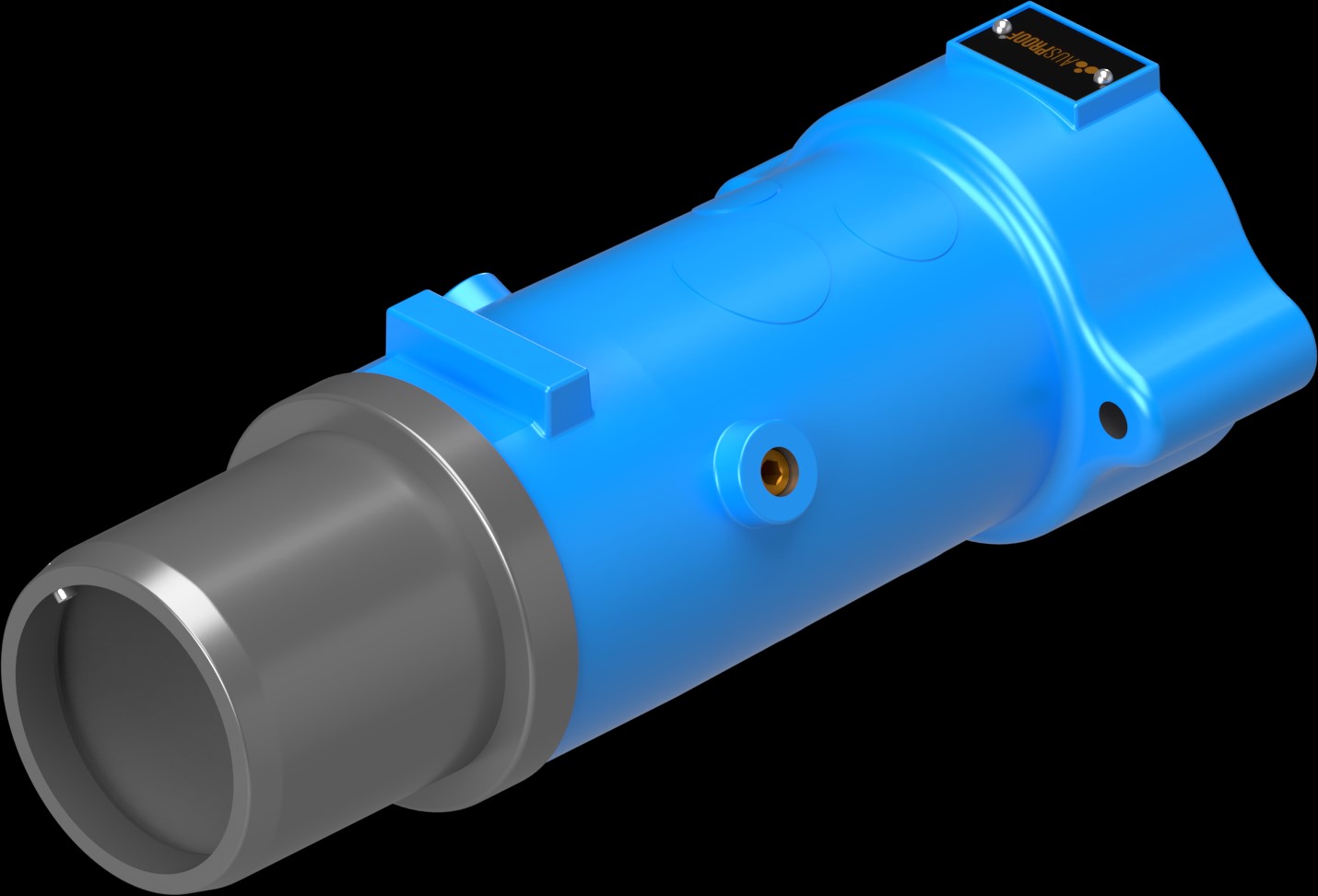

6 Pin Plug 300A | IP55 Rated | Quick Release & Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS1472

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

The Ausproof 6 Pin Plug with a 300A current rating and IP55 ingress protection is ideal for mining and tunnelling applications. Built for hazardous environments, it features quick release and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL 1100V 300A 6 Pin Plug (90) 120-C 60-65-G (241.1)

Brand: Ausproof

SKU: RS1472

Alternatively Known As: Ex-certified 6 Pin Plug, Mining Plug, Flameproof Plug, Stainless Steel Industrial Plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 200mm x 250mm x 150mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by qualified personnel trained in hazardous area electrical equipment to ensure compliance with safety standards.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy on-site repair reduces waste and downtime.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 1100V 300A 6 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
