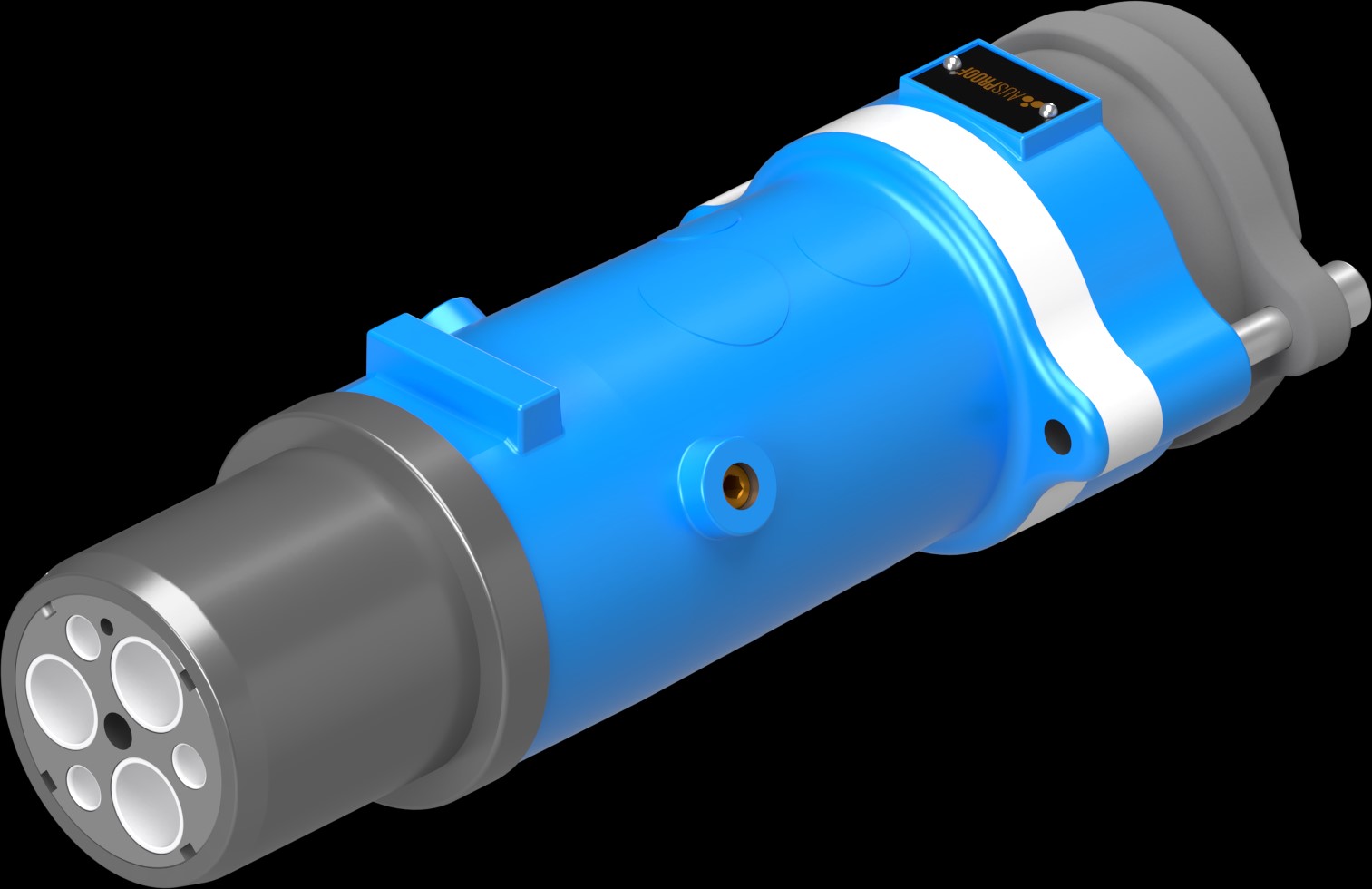

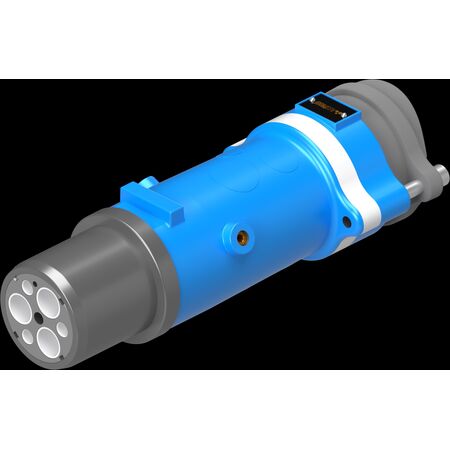

6 Pin Plug 425A | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
This 6 pin plug with a 425A current rating and voltage range of 660V to 3300V is ideal for mining and hazardous environments. Built for durability with stainless steel construction and IP55 ingress protection, it features quick release and easy termination for efficient use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 1100V 425A 6 Pin Plug (0) 16-C 35-40-G (241.1)
Brand: Ausproof
SKU: RS1502
Alternatively Known As: Ex-certified 6 Pin Plug, Mining Plug, Flameproof Plug, Stainless Steel Industrial Plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 250mm x 300mm x 150mm
- Weight: 9.0 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by qualified personnel trained in hazardous area electrical equipment installation to ensure compliance and safety.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- AS/NZS 1299 – Electrical Equipment in Hazardous Areas
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability reduces waste by allowing on-site repairs without full replacement.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 1100V 425A 6 Pin Plug is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
