Home/Electrical/Cabling/Cable/Flexible Cable/6 Pin Plug 425A | IP55 Rated | Quick Release & Flameproof Design | Ausproof

Trade Discount 19%

PL 1100V 425A 6 Pin Plug (0) 70-C 50-55-G (241.1)

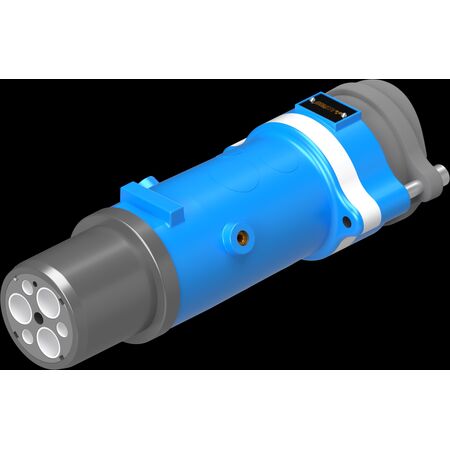

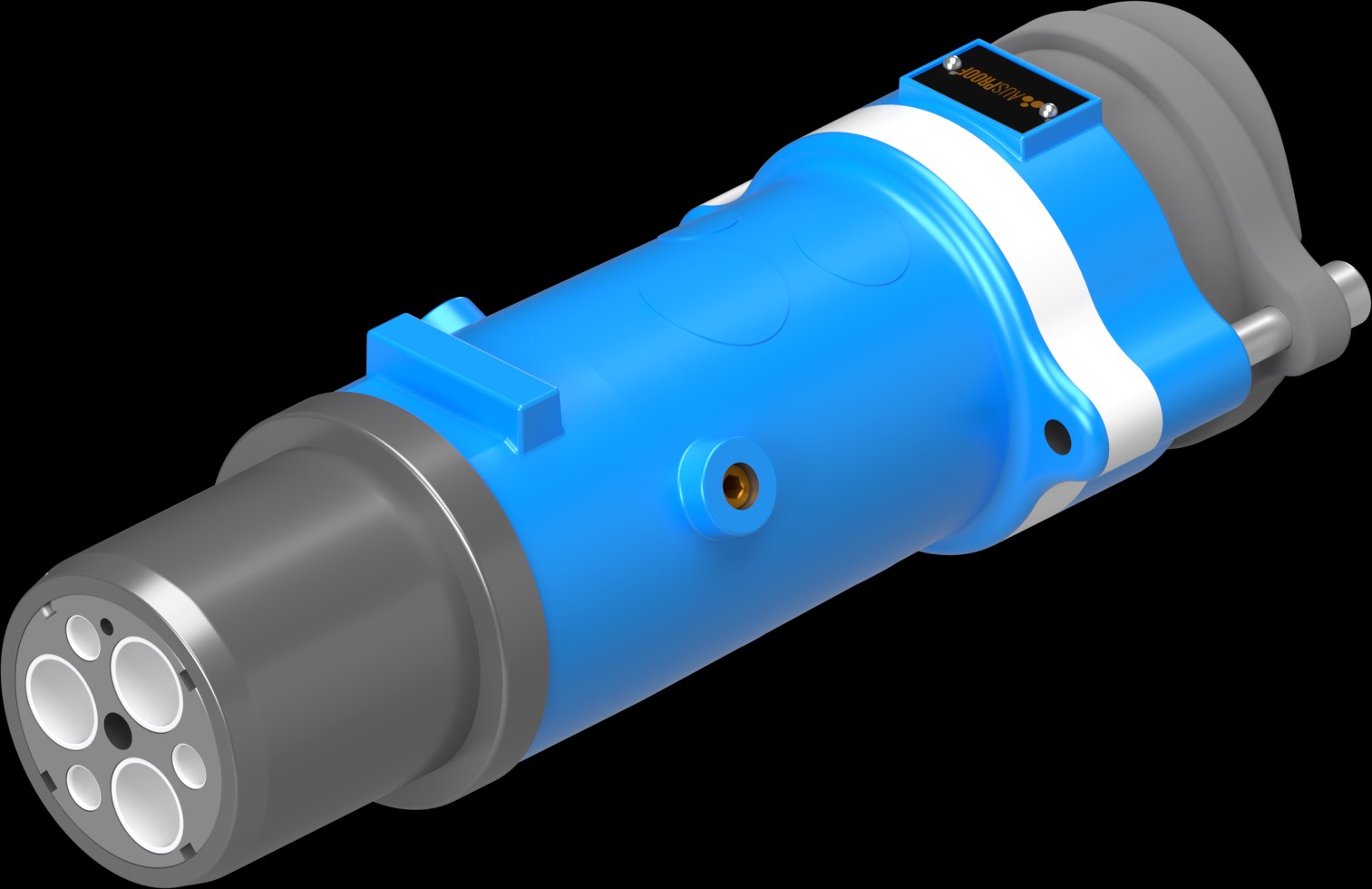

6 Pin Plug 425A | IP55 Rated | Quick Release & Flameproof Design | Ausproof

BRAND: Ausproof

SKU: RS1506

$1,611.50 List price: $2,001.50

+ −

30 Days Return Delivery Options

The 6 Pin Plug with a 425A current rating and IP55 ingress protection is ideal for mining and hazardous environments. Built for industrial applications, it features a quick release mechanism and durable stainless steel construction for enhanced safety and easy maintenance.

Description

Product Name/Title: PL 1100V 425A 6 Pin Plug (0) 70-C 50-55-G (241.1)

Brand: Ausproof

SKU: RS1506

Alternatively Known As: Ex-certified 6 Pin Plug, Flameproof Industrial Plug, Mining Electrical Plug, Hazardous Area Plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 250mm x 300mm x 150mm
Weight: 9.0 kg

Key Features

Quick Release mechanism
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining and tunnelling operations
Commercial applications in Group 1 hazardous environments
Industrial low voltage electrical connections requiring flameproof plugs

Standards & Compliance

Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof design enhances safety, reducing risk of environmental hazards
Easy on-site repair reduces waste and resource consumption

Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 1100V 425A 6 Pin Plug is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial applications.
