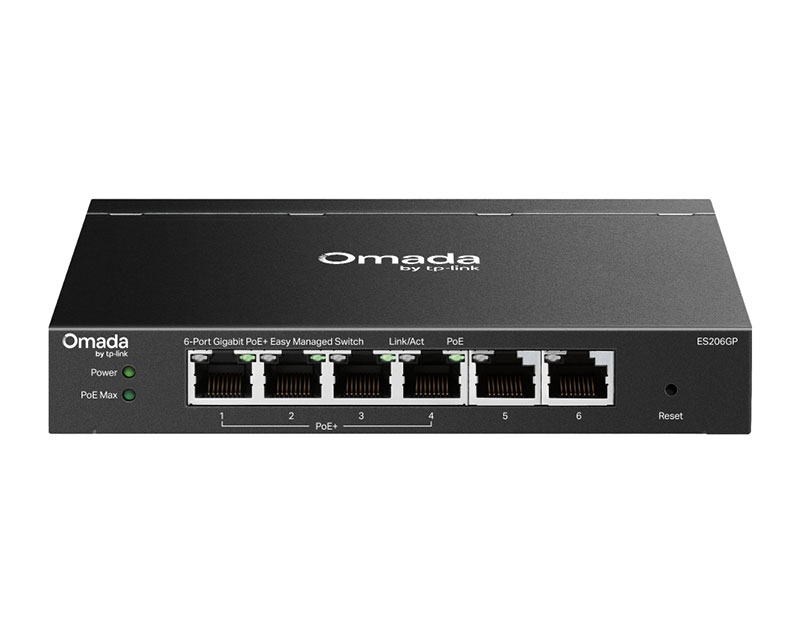

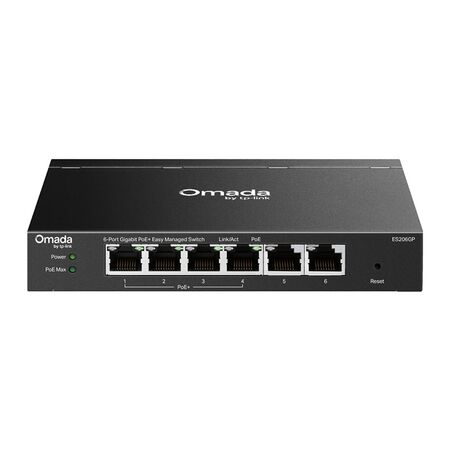

6-Port Gigabit PoE Switch 65W TP-Link ES206GP Ness
Ness TP-Link 6-port gigabit PoE switch features 65W PoE power. Ideal for CCTV and network installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: TP-Link ES206GP, 6-Port Gigabit PoE Switch, 4-Port PoE+ Network Switch
Technical Specifications
- Model: ES206GP
- Ports: 6 x 10/100/1000 Mbps RJ45 ports
- PoE Ports: 4 x Gigabit PoE+ RJ45 ports
- Non-PoE Ports: 2 x Gigabit RJ45 ports
- PoE Standard: IEEE 802.3af/at
- PoE Power Budget: 65 W total, up to 30 W per PoE port
- Switching Capacity: 12 Gbps
- Packet Forwarding Rate: 8.93 Mpps
- MAC Address Table: 8K entries
- Management: Web-based GUI, Omada hardware/software/cloud controller support
- Network Features: VLAN, QoS, IGMP Snooping, LLDP, link aggregation and port isolation
- PoE Features: Fast PoE, Perpetual PoE, PoE Auto Recovery and up to 250 m PoE transmission
- Power Supply: 53.5 VDC, 1.31 A
- Maximum Power Consumption: 76.6 W with 65 W powered device load
- Operating Temperature: -5 °C to 40 °C
- Mounting: Desktop or wall mounting
- Cooling: Fanless
- Certifications: CE, FCC and RoHS
- Dimensions (H x L x W): 25.4mm x 100.7mm x 158mm
- Weight: 0.45 kg
Key Features
- Four Gigabit PoE+ ports for powering compatible CCTV cameras, access points and other network devices
- 65 W total PoE budget with up to 30 W available per PoE port
- Six Gigabit Ethernet ports for high-speed network connectivity
- Fanless metal housing for quiet operation
- PoE Auto Recovery can automatically restart unresponsive powered devices
- Supports VLAN, QoS, IGMP Snooping, loop prevention and port isolation
- Desktop or wall-mount installation
- Omada management support for centralised monitoring and configuration
Professional Installation Requirements
- No professional installation is normally required. Connect the supplied power adaptor and Ethernet cabling; fixed mains wiring, if required, must be completed by a suitably licensed electrician in accordance with applicable Australian requirements.
Applications
- CCTV and IP camera installations
- Small business and residential Ethernet networks
- Wireless access point deployments
- VoIP and other PoE-powered network devices
- Security, intercom and access-control networks
Standards & Compliance
- AS/NZS 62368.1:2022 or AS/NZS 62368.1:2026: applicable safety standard family for audio/video, information and communication technology equipment; verify the supplied Australian unit's product-specific declaration and RCM marking before installation
- AS/NZS 4417.1 and AS/NZS 4417.2: applicable RCM marking framework for electrical equipment supplied in Australia and New Zealand
Environmental Benefits
- Fanless operation avoids fan-related replacement waste and can reduce operating noise
- RoHS certification indicates restriction of specified hazardous substances in the product
- PoE enables power and data delivery over a single Ethernet cable, potentially reducing separate power cabling and installation materials
- Metal housing and network hardware designed for continued service can help reduce replacement frequency
Warranty Information
Ness warranty policy states that Ness-manufactured or supplied products are covered for 3 years from the date of purchase, subject to the published warranty terms. Confirm coverage for this TP-Link supplied product with Ness at purchase.
Available Now
Available through Ness and authorised Australian networking and security-equipment distributors, subject to distributor stock.
