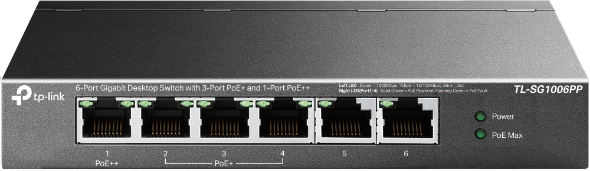

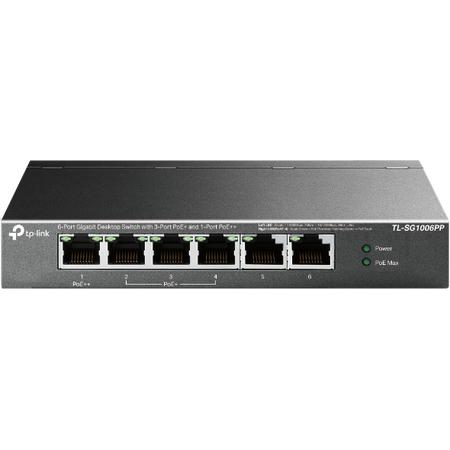

6-Port Unmanaged Gigabit PoE Switch | 64W Power Budget | Metal Case | by TP-LINK
The 6-Port Unmanaged Gigabit PoE Switch from TP-LINK is designed for small to medium business networks, featuring 6× 10/100/1000 Mbps RJ45 ports, including one PoE++ and three PoE+ ports. With a total PoE power budget of 64W and up to 250m transmission range in Extend Mode, it’s perfect for powering IP cameras, VoIP phones, and wireless access points without the need for separate power cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Gigabit PoE Switch, 6-Port PoE Network Switch, TP-LINK PoE Switch, Unmanaged PoE Switch
Technical Specifications
- Ports: 6× 10/100/1000 Mbps RJ45
- PoE Ports: 1× PoE++ (60W), 3× PoE+ (30W each)
- Total PoE Power Budget: 64W
- Standards: IEEE 802.3af/at/bt compliant
- QoS: 802.1p/DSCP support
- Transmission Range: Up to 250m in Extend Mode
- PoE Auto Recovery: Yes
- Case Material: Metal
- Plug and Play: Yes
- Dimensions (H x L x W): 30mm x 120mm x 180mm
- Weight: 1.2 kg
Key Features
- 6× 10/100/1000 Mbps RJ45 ports with one PoE++ port and three PoE+ ports
- Supports IEEE 802.3af/at/bt compliant powered devices
- 802.1p/DSCP QoS for smooth latency-sensitive traffic
- PoE power up to 30W per PoE+ port and 60W for PoE++ port
- Total PoE power budget of 64W
- Up to 250m data and power transmission range under Extend Mode
- PoE Auto Recovery to reboot unresponsive powered devices
- Plug and Play with no configuration required
- Durable metal case construction
- 5-year warranty
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Small to medium business networks requiring PoE power delivery
- IP cameras and surveillance systems
- VoIP phones and wireless access points
- Network setups needing extended power and data transmission
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces the need for separate power cables, lowering material use and installation impact
- Energy-efficient design minimizes power consumption during operation
Warranty Information
5 years warranty covering manufacturing defects and hardware failures.
Available Now
The TP-LINK 6-Port Unmanaged Gigabit PoE Switch is available for immediate purchase, ideal for powering network devices in commercial and surveillance applications.
