6 Way F-Type Splitter | 5-2400MHz | Power Pass All Ports | Compact Design by Matchmaster
6 way F-Type splitter with 5-2400MHz frequency range and power pass on all ports—ideal for residential and commercial cable installations. Built for enhanced signal distribution, with compact design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

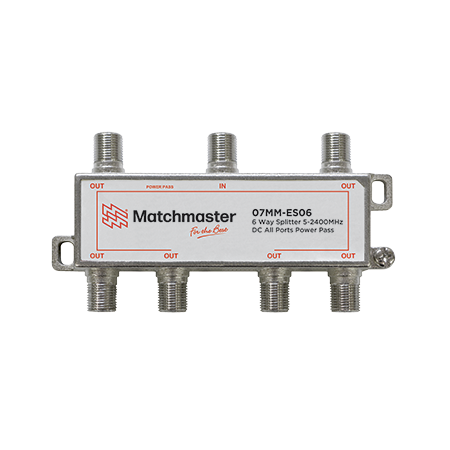

Product Name/Title: 6 Way Splitter 'F' Type 5-2400MHz Power Pass All Ports (Bag)
Brand: Matchmaster
SKU: 07MM-ES06
Alternatively Known As: F-type 6 way splitter, 6 port F splitter, satellite splitter, CATV splitter, power pass splitter
Technical Specifications
- Frequency range: 5-2400MHz
- Insertion loss: ≤10.0dB (5-40MHz), ≤11.5dB (40-1000MHz), ≤13.8dB (1000-1750MHz), ≤17dB (1750-2400MHz)
- Mutual isolation: ≥18dB (5-40MHz), ≥20dB (40-1000MHz), ≥20dB (1000-1750MHz), ≥20dB (1750-2400MHz)
- Return loss: ≥10dB across all frequency ranges
- All ports support DC power pass
- Dimensions (H x L x W): 20mm x 100mm x 80mm
- Weight: 0.1 kg
Key Features
- F-type all port DC power pass
- Frequency range 5-2400MHz suitable for CATV and satellite
- Cost-effective solution for signal splitting
- Available in multiple way options (2, 3, 4, 6, 8)
- Individually packaged in polybags to minimize waste and maximize storage
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper signal distribution and safety.
Applications
- Domestic TV and satellite installations
- MATV (Master Antenna Television) systems
- CATV (Cable Television) frequency range applications
- Satellite and FTA (Free-to-Air) signal distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Individually packaged in simple polybags to reduce packaging waste
- Durable design reduces need for frequent replacements
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 6 Way Splitter 'F' Type 5-2400MHz Power Pass All Ports is available now for immediate purchase. Ideal for domestic and MATV satellite and CATV installations.
