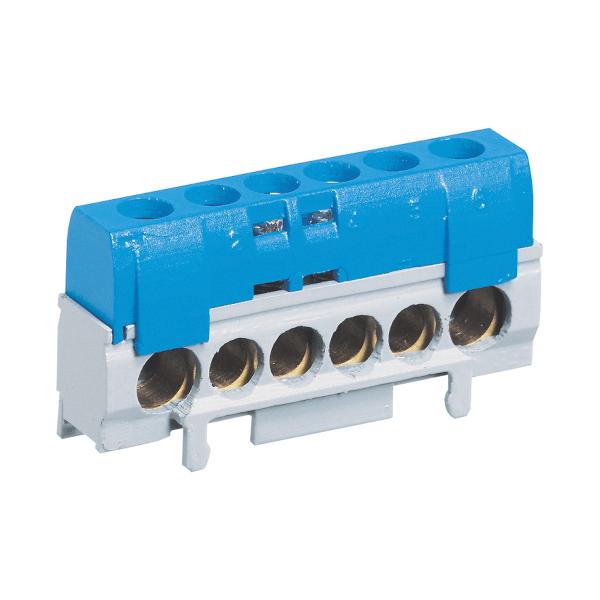

6 Way IP2X Terminal Block | 100A Max | Blue Cover | 400V by Legrand
6 way IP2X terminal block with 100A max current and blue cover—ideal for electrical distribution systems. Built for easy identification and compliance, with symmetrical or asymmetrical rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6 Way IP2X Terminal Block | 100A Max | Blue Cover | 400V by Legrand
Brand: Legrand
SKU: 04815
Alternatively Known As: 6 Way Terminal Block, IP2X Terminal Block, Blue Cover Terminal Block, Electrical Terminal Block, Distribution Terminal Block
Technical Specifications
- Max current: 100 A with 25 mm² input
- Max current: 80 A with 16 mm² input
- Voltage rating: 400 V~
- Number of connections: 1 x 10 to 35 mm² + 5 x 6 to 25 mm²
- Length: 62 mm
- IP rating: IP2X
- Mounting: Symmetrical or asymmetrical rail with universal support Cat.No 0 048 11 or 12 x 2 flat
- Standard compliance: IEC 60998-2-1
- Dimensions (H x L x W): 30mm x 16mm x 62mm
- Weight: 0.1 kg
Key Features
- Constructed with brass and zinc-plated bichromated steel
- Blue removable cover for easy identification of neutral or phase
- Can be combined with extra supports
- IP2X rated terminal blocks
- Mounting on symmetrical or asymmetrical rail with universal support
- Conforms to IEC 60998-2-1 standard
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper mounting.
Applications
- Electrical distribution systems
- Use with Plexo³ range, HL, and XL³ 125 enclosures
- Suitable for mounting on symmetrical or asymmetrical rails
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Supports efficient electrical distribution reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty details.
Available Now
The Legrand 6 Way IP2X Terminal Block with Blue Cover is available now for immediate purchase. Ideal for electrical distribution and connection applications in residential, commercial, and industrial settings.
