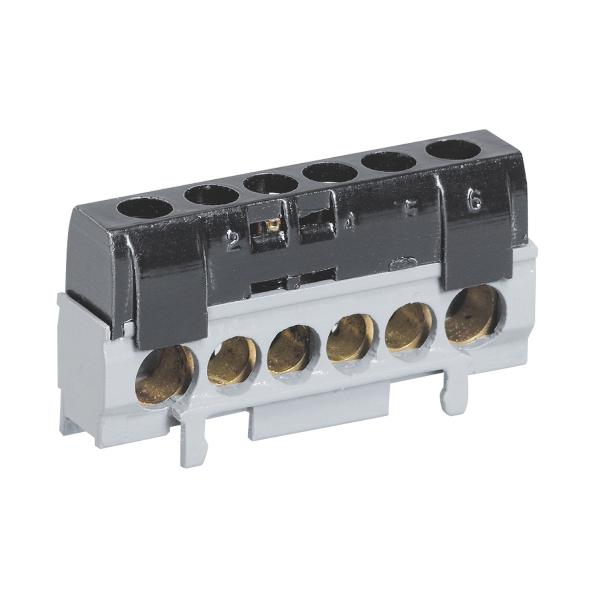

6 Way Terminal Block | IP2X Rated | 100A Max | Black Cover by Legrand
6 way terminal block with IP2X rating and 100A max current—ideal for industrial and commercial electrical panels. Built for durability with brass and zinc-plated steel, featuring a black cover for easy identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6 Way Terminal Block | IP2X Rated | 100A Max | Black Cover by Legrand
Brand: Legrand
SKU: 04816
Alternatively Known As: 6 Way Terminal Block, IP2X Terminal Block, Electrical Terminal Block, Distribution Terminal Block, Legrand Terminal Block
Technical Specifications
- Material: Brass and zinc-plated bichromated steel
- Number of connections: 1 x 10 to 35 mm² + 5 x 6 to 25 mm²
- Max current: 100 A with 25 mm² input, 80 A with 16 mm² input
- Voltage rating: 400 V~
- IP Rating: IP2X
- Length: 62 mm
- Conforms to IEC 60998-2-1
- Dimensions (H x L x W): 30mm x 16mm x 62mm
- Weight: 0.1 kg
Key Features
- Constructed with brass and zinc-plated bichromated steel for durability
- Black removable cover for easy identification of neutral or phase
- Compatible with universal terminal block supports
- IP2X rated for safety
- Supports up to 100 A max at 400 V~ with 25 mm² input
- Supports up to 80 A max at 400 V~ with 16 mm² input
- Conforms to IEC 60998-2-1 standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting on DIN rails.
Applications
- Electrical distribution and connection in industrial and commercial electrical panels
- Use with Plexo³ range, HL, and XL³ 125 enclosures
- Suitable for mounting on symmetrical or asymmetrical rails
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Supports efficient electrical distribution reducing energy losses
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand 6 Way IP2X Terminal Block with Black Cover is available now for immediate purchase. Ideal for electrical distribution and connection in industrial and commercial electrical panels.
