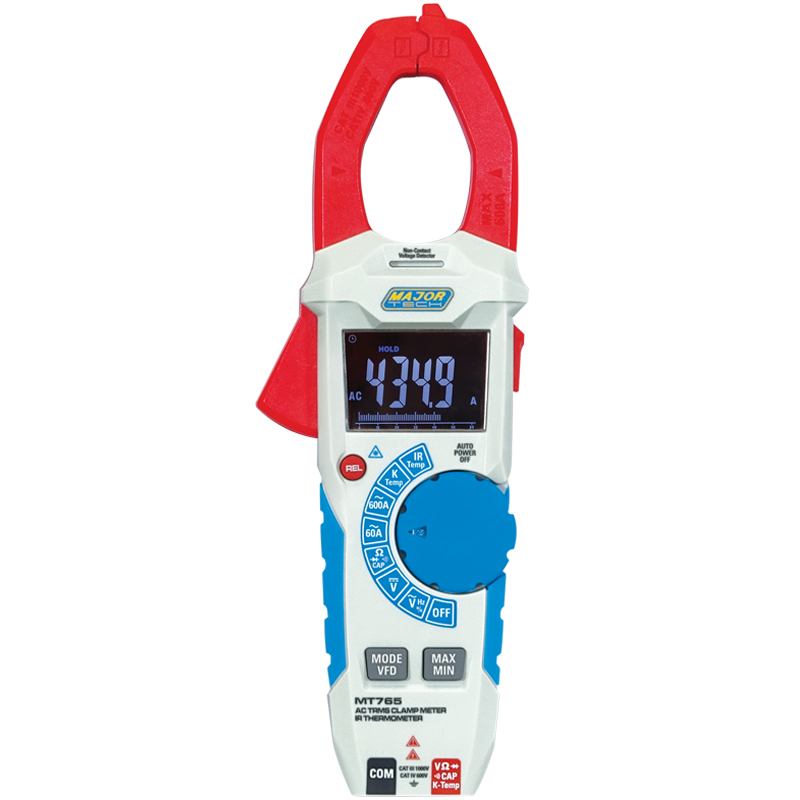

600A AC Clamp Meter | True RMS | Infrared Thermometer | CAT IV 600V by Majortech
The 600A AC Clamp Meter offers True RMS measurement and an integrated infrared thermometer—ideal for electricians and HVAC technicians. Built for accurate electrical diagnostics, it features a large LCD display and non-contact voltage detection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 600A AC Clamp Meter | True RMS | Infrared Thermometer | CAT IV 600V by Majortech
Brand: Majortech
SKU: MT765
Alternatively Known As: 600A AC Clamp Meter, Digital Clamp Meter with IR Thermometer, True RMS Clamp Meter, Electrical Clamp Meter, HVAC Clamp Meter
Technical Specifications
- DC Voltage Range: 0.1mV to 1000V, Resolution: 1mV, Accuracy: ±(0.8% + 5 digits)
- AC Voltage Range: 0.1V to 1000V, Resolution: 1mV, Accuracy: ±(1.5% + 5 digits)
- Resistance Range: 0.001Ω to 60.00MΩ, Resolution: 0.1Ω, Accuracy: ±(2.0% + 5 digits)
- Frequency Range: 0.001Hz to 9.999kHz, Resolution: 1mHz, Accuracy: ±(1.5% + 6 digits)
- Capacitance Range: 0.001nF to 99.99mF, Resolution: 0.1nF, Accuracy: ±(4% + 6 digits)
- Temperature K-Type Range: -20°C to 1000°C, Resolution: 0.1°C, Accuracy: ±(3°C + 3 digits)
- IR Temperature Range: -30°C to 350°C, Spot Ratio 4:1, Resolution: 0.1°C, Accuracy: ±(2°C + 2 digits)
- Duty Cycle Range: 20.0% to 80.0%, Resolution: 0.1%, Accuracy: ±(1.2% + 5 digits)
- VFD function for stable voltage measurement in variable frequency drives
- Dimensions (H x L x W): 180mm x 40mm x 80mm
- Weight: 0.5 kg
Key Features
- CAT IV 600V True RMS 600A AC digital clamp meter
- Incorporates an Infrared Thermometer with 4:1 spot ratio
- Large 6000 count negative LCD display with fast sampling
- Measures AC/DC voltage up to 1000V, frequency, capacitance, resistance
- K-Type thermometer input for temperature up to 1000°C
- VFD function for stable voltage measurement in high frequency applications
- Relative Mode for capacitance zero and DCV, ACV and ACA offset adjustment
- Non-contact voltage detection and data hold function
- Built-in flashlight for use in dimly lit areas
- Rugged double moulded rubber housing for durability
Professional Installation Requirements
- No professional installation required; recommended for use by qualified electricians or trained professionals for accurate measurements and safety.
Applications
- Electricians for electrical measurements and troubleshooting
- Maintenance professionals for equipment diagnostics
- HVAC technicians for temperature and electrical parameter measurements
- Mining industry for robust and accurate electrical testing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables accurate electrical measurements to improve energy efficiency
- Helps in preventive maintenance reducing equipment failure and waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Majortech MT765 600A AC Clamp Meter is available now for immediate purchase. Ideal for electrical, maintenance, HVAC, and mining applications requiring precise and versatile measurement tools.
