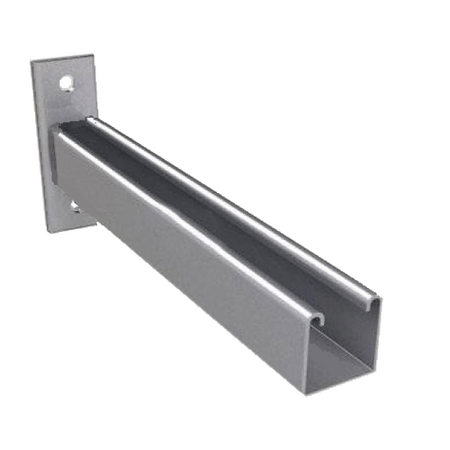

600mm Cantilever Bracket | Hot Dip Galvanised | 2.5mm Mild Steel | Wall Mounted | by Unistrut
The 600mm Cantilever Bracket is designed for robust support in industrial applications, featuring a hot dip galvanised finish for corrosion resistance and durability. Made from 2.5mm thick mild steel, it’s perfect for wall-mounted cable trays, HVAC systems, and heavy-duty shelving. With pre-drilled holes for easy installation, this bracket ensures secure mounting in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 600mm Cantilever Bracket | Hot Dip Galvanised | 2.5mm Mild Steel | Wall Mounted | by Unistrut
Brand: Unistrut
SKU: 4012338
Alternatively Known As: 600mm Cantilever Arm Bracket, Hot Dip Galvanised Support Bracket, Wall Mounted Cantilever Support, Industrial Cantilever Bracket
Technical Specifications
- Material: 2.5mm thick mild steel
- Finish: Hot Dip Galvanised (HDG)
- Back Plate Dimensions: 130mm x 45mm x 8mm thick
- Fixing Holes: 2 pre-drilled, 14mm diameter suitable for M12 fixings
- Projection: 600mm from wall
- Compatible with 41mm Strut Channels
- Weight: Approximately 1.967 kg
- Dimensions (H x L x W): 45mm x 600mm x 130mm
- Weight: 2 kg
Key Features
- Projection: 600mm from wall/fixing surface
- Material: 2.5mm thick mild steel
- Finish: Hot Dip Galvanised (HDG) – corrosion-resistant and weatherproof
- Back Plate: 130mm x 45mm, 8mm thick with 2 pre-drilled fixing holes
- Hole Size: 14mm – suitable for M12 fixings
- Channel Profile: Compatible with 41mm Strut Channels
- System Fit: Works with all brackets and channel nuts
- Built for industrial environments with strength, durability, and ease of installation
- HDG coating ensures long-lasting performance against rust and corrosion
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure secure mounting and compliance with structural safety standards.
Applications
- Wall-mounted cable tray and trunking support
- HVAC pipework and ducting
- Plant room systems
- Heavy-duty shelving or structural containment frameworks
- External equipment mounting such as risers and facades
- Factories, service risers, rooftop systems, and demanding plant environments
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanised finish extends product life reducing replacement frequency and waste
- Durable steel construction supports sustainable industrial infrastructure
Warranty Information
Standard manufacturer warranty applies; please refer to Unistrut warranty terms for details.
Available Now
The Unistrut P2663600H 600mm Hot Dip Galvanised Cantilever Bracket is available for immediate purchase, ideal for industrial, mechanical, and electrical support applications.
