600mm Cantilever Bracket Set | Hot Dip Galvanised Steel | 150kg Load Capacity | Complete Mounting Kit | by Aspen Pumps

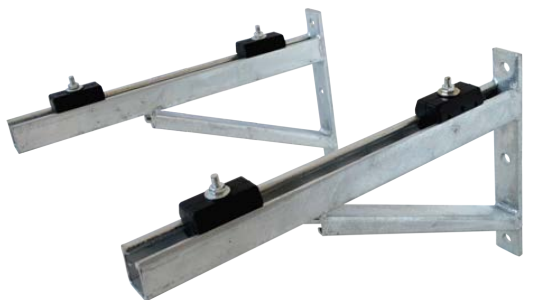

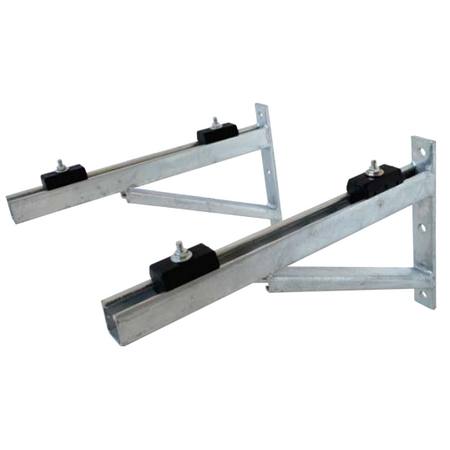

The 600mm Cantilever Bracket Set is designed for securely mounting air conditioning units on walls, featuring durable hot dip galvanised steel construction and a maximum load capacity of 150kg. Ideal for both residential and commercial HVAC installations, this set includes a complete mounting kit with wall fastenings and vibration mounts for enhanced stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 600mm Cantilever Bracket Set | Hot Dip Galvanised Steel | 150kg Load Capacity | Complete Mounting Kit | by Aspen Pumps
Brand: Aspen Pumps
SKU: CB600
Alternatively Known As: Air Conditioning Mount Bracket, HVAC Cantilever Bracket, Wall Mount Bracket for AC Units
Technical Specifications
- Material: Hot dip galvanised steel
- Height: 280mm
- Maximum Load Capacity: 150kg
- Includes 4 vibration mounts for 40mm channel
- Set includes 2 brackets and complete mounting kit with wall fastenings
- Dimensions (H x L x W): 280mm x 100mm x 600mm
- Weight: 3.5 kg
Key Features
- Made from hot dip galvanised steel for durability and corrosion resistance
- Includes a complete mounting kit with wall fastenings
- Comes with 4 purpose-designed vibration mounts to suit 40mm channel
- Supports a maximum load of 150kg
Professional Installation Requirements
- Professional installation by a qualified technician or tradesperson is recommended to ensure secure mounting and compliance with structural standards.
Applications
- Mounting air conditioning units securely on walls
- Suitable for residential and commercial HVAC installations
- Supports equipment requiring vibration isolation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanised steel construction extends product life, reducing replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen 600mm Cantilever Bracket Set is available now for immediate purchase. Ideal for securely mounting air conditioning units in residential and commercial HVAC applications.
