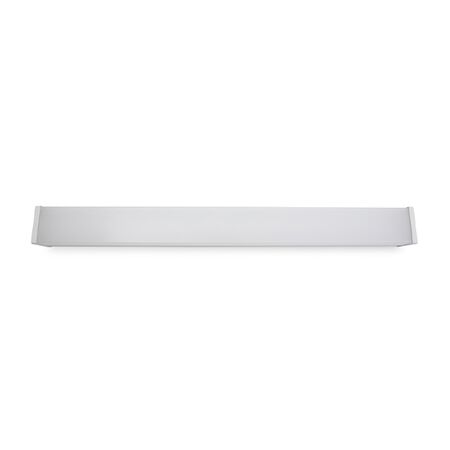

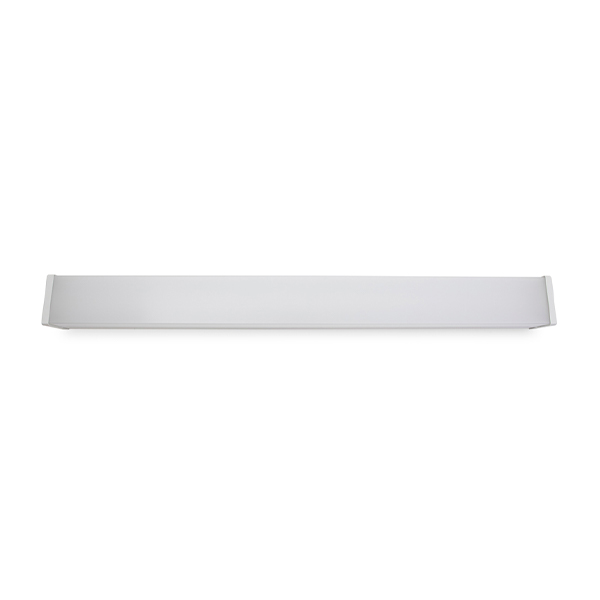

600mm Diffused LED Batten | Tri-CCT | 118 lm/W Efficiency | IP20 Rated | by Ektor
The 600mm Diffused LED Batten with Tri-CCT configuration offers versatile lighting options with 4000K, 5000K, and 6500K color temperatures. Designed for commercial and emergency lighting, it features a high efficiency of 118 lm/W and a durable IP20 rated surface mount fitting. With a long LED lifetime exceeding 60,000 hours, this batten is perfect for corridors, offices, and industrial spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 600mm LED Batten Light, Tri-Colour Temperature LED Batten, Diffused LED Ceiling Light, Emergency LED Batten, Surface Mount LED Batten
Technical Specifications
- Dimensions (H x L x W): 60mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K colour temperatures
- High total system efficiency up to 118 lm/W
- IP20 rated surface mount fitting with white powder coated steel body
- Non-dimmable fixed output driver with re-wireable terminal block
- Long LED lifetime greater than 60,000 hours (L70B10 rating)
- Emergency maintained mode with 90 minutes duration and 400 lm output
- Microwave sensor options available with adjustable hold time and detection area
- Power factor of 0.9 and input voltage range 216-253Vac
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper emergency wiring.
Applications
- Commercial lighting for offices, retail, and industrial spaces
- Surface mount lighting for corridors, hallways, and general indoor areas
- Emergency lighting with maintained emergency mode
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 8 years minimizes waste and replacement frequency
- Low standby power consumption of 1W for emergency devices
- Compliant with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years) for registered users. Standard warranty is 5 years return-to-base with first 2 years including onsite warranty. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 600mm Diffused LED Batten - Tri-CCT is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
