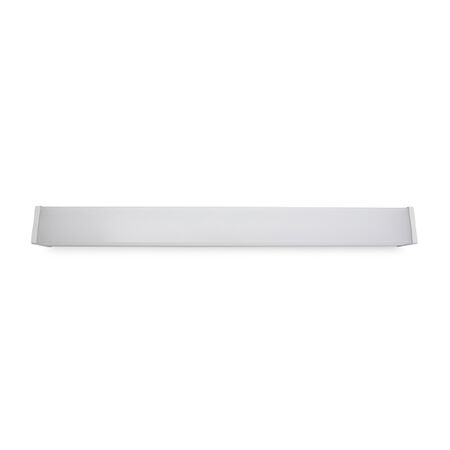

600mm Diffused LED Batten | Tri-CCT with Microwave Sensor | IP20 Rated | by Ektor
The 600mm Diffused LED Batten is designed for versatile lighting solutions, featuring a Tri-CCT configuration for adjustable color temperatures and a microwave sensor with a 10m detection range. Ideal for commercial and industrial applications, this batten ensures high efficiency of 118 lm/W and a long LED lifetime of over 60,000 hours, making it a reliable choice for emergency and general indoor lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Tri-CCT LED Batten, Sensor LED Batten, Emergency LED Batten, Diffused LED Batten
Technical Specifications
- Total System Efficiency: 118 lm/W
- IP Rating: IP20
- Fitting Colour: White
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.9
- Maximum Wattage: 17 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.1 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: TRI-CCT
- Macadam Steps: 4-step MacAdam Ellipse
- Lamp/LED Voltage: 42 V
- Lamp/LED Current: 350 mA
- LED Lifetime: >60000 hrs (L70B10 rating)
- Driver Type: Fixed output, constant current
- Driver Included: Yes
- Integrated Driver: No
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Sensor Type: Microwave
- Detection Range: 10 m
- Time Delay: 5s-14mins
- Emergency Mode: Maintained
- Emergency Duration: 90 mins
- Emergency Output Power: 3400 mW
- Emergency Lumen Output: 400 lm
- Product Design Life: 8 years
- Daily Use: 16 hrs
- Dimensions (H x L x W): 50mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- Tri-CCT (Correlated Colour Temperature) configuration for adjustable lighting
- Microwave sensor with 10m detection range and adjustable settings
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 118 lm/W
- IP20 rated surface mount fitting with powder coated steel body and PMMA diffuser
- Fixed output driver with constant current mode
- Non-dimmable with re-wireable terminal block wiring
- Colour Rendering Index (CRI) greater than 80
- Long LED lifetime greater than 60,000 hours (L70B10 rating)
- Low standby power consumption (1W)
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal sensor and emergency function setup.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Corridors and general indoor lighting
- Emergency lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires - General requirements and tests
- AS/NZS 60598.2.1 – Luminaires - Particular requirements - Fixed general purpose luminaires
- AS/NZS 61347.1 – Lamp control gear - General and safety requirements
- AS/NZS 61347.2.13 – Particular requirements for d.c. or a.c. supplied electronic control gear for LED modules
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
- AS/NZS 2293.3 – Emergency escape lighting and exit signs for buildings - Emergency lighting
- AS/NZS 4268 – Control gear for LED modules
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Low standby power consumption conserves energy
- Compliant with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base with onsite warranty available to registered users in defined regions. Warranty covers up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 600mm Diffused LED Batten with Tri-CCT and sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
