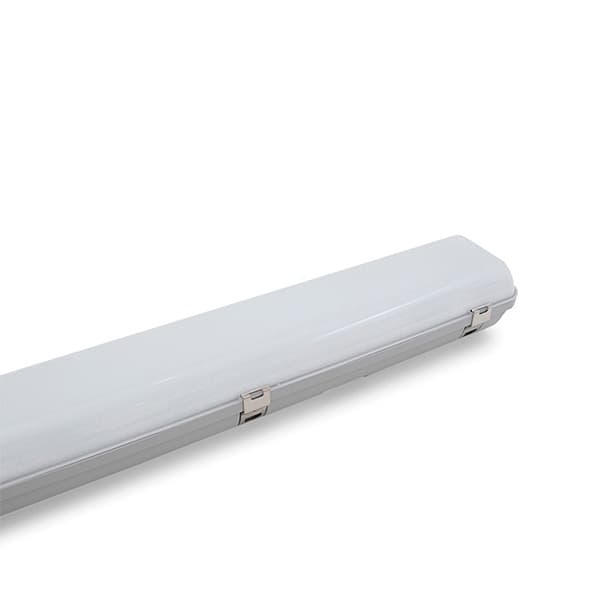

600mm LED Batten Light | Tri-CCT Configuration | IP65 Rated | Microwave Sensor | by Ektor
The 600mm LED Batten Light features a versatile Tri-CCT configuration, allowing you to choose between different color temperatures for your lighting needs. With an IP65 rating for dust and water resistance and a durable IK08 impact rating, this batten is perfect for both commercial and industrial applications. The integrated microwave sensor enhances energy efficiency by adjusting to the environment, making it ideal for emergency and sensor-controlled lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 600mm LED Batten Light, Tri-CCT LED Batten, Sensor LED Batten, Emergency LED Batten, IP65 LED Batten
Technical Specifications
- Dimensions (H x L x W): 60mm x 600mm x 600mm
- Weight: 1.2 kg
Key Features
- Tri-CCT (Correlated Colour Temperature) configuration for versatile lighting options
- IP65 rated for dust and water resistance
- IK08 impact rating for durability
- Microwave sensor with adjustable detection range and time delay
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 114 lm/W
- Fixed output driver with power factor of 0.9
- Non-dimmable
- 4-step MacAdam ellipse for colour consistency
- Long LED lifetime greater than 60,000 hours
- Grey polycarbonate body and diffuser
- Surface mount installation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor configuration.
Applications
- Commercial and industrial lighting
- Surface mount installations in indoor and outdoor environments
- Emergency and sensor-controlled lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2.1: Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- High energy efficiency reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- IP65 rating protects against environmental damage, extending product life
- Sensor technology reduces unnecessary lighting usage
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 600mm LED Batten with Tri-CCT and sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
