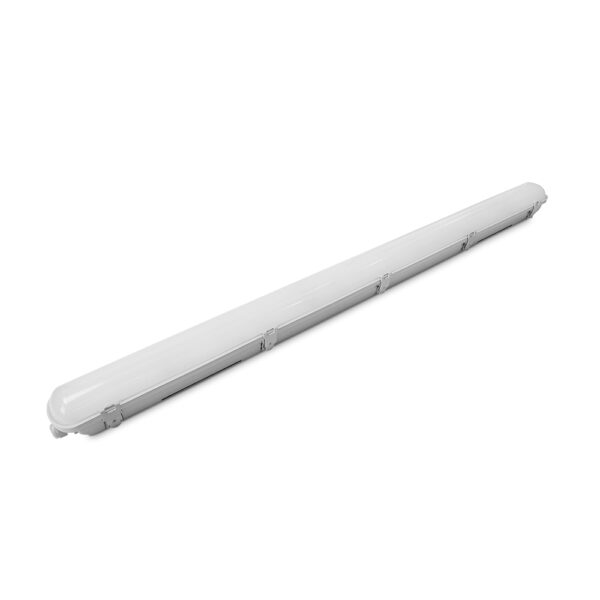

600mm LED Batten Tri CCT | IP65 Rated | 134 lm/W Efficiency | Grey Polycarbonate | by Ektor
The 600mm LED Batten Tri CCT is designed for commercial and industrial lighting, featuring an IP65 rating for dust and water protection. With a high efficiency of 134 lm/W and a durable polycarbonate body, this surface mount batten offers selectable color temperatures of 4000K, 5000K, and 6500K, making it ideal for various applications while ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 600mm LED Batten Light, Tri CCT LED Batten, IP65 LED Batten, Surface Mount LED Batten, Ektor LED Batten
Technical Specifications
- Total System Efficiency: 134 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.95
- Maximum Wattage: 32 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.16 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (4000K, 5000K, 6500K)
- Macadam Steps: 6-step MacAdam Ellipse
- Lamp/LED Voltage: 99 V
- Lamp/LED Current: 300 mA
- LED Lifetime: >72,000 hours (L80B10 at 25°C and 40°C)
- Driver Type: Fixed output, constant current
- Driver Included: Yes
- Dimmable: No
- Wiring Type: Re-wireable Flex & Plug (3 pin), 1700 mm lead
- Emergency Mode: Combined, 90 minutes duration, 250 lm output
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Dimensions (H x L x W): 50mm x 600mm x 600mm
- Weight: 1.2 kg
Key Features
- High total system efficiency up to 134 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Tri-CCT configuration with 4000K, 5000K, and 6500K selectable colour temperatures
- Colour Rendering Index (CRI) greater than 80
- Long LED lifetime greater than 72,000 hours (L80B10)
- Fixed output driver with power factor of 0.95
- Non-dimmable with inline switch
- Re-wireable flex & plug wiring type with 1700 mm lead
- Emergency mode available with 90 minutes duration and 250 lm emergency output
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4 to reduce flicker and visual discomfort
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial and industrial lighting
- Surface mount installations requiring IP65 rated luminaires
- Areas needing tri-colour temperature adjustable LED lighting
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp Control Gear
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes including Ipart, REES, and VEU approvals
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 15,000 operating hours.
Available Now
The Ektor UMBRA CORE 600mm LED Batten - Tri CCT is available for immediate purchase, ideal for commercial and industrial surface mount lighting applications.
