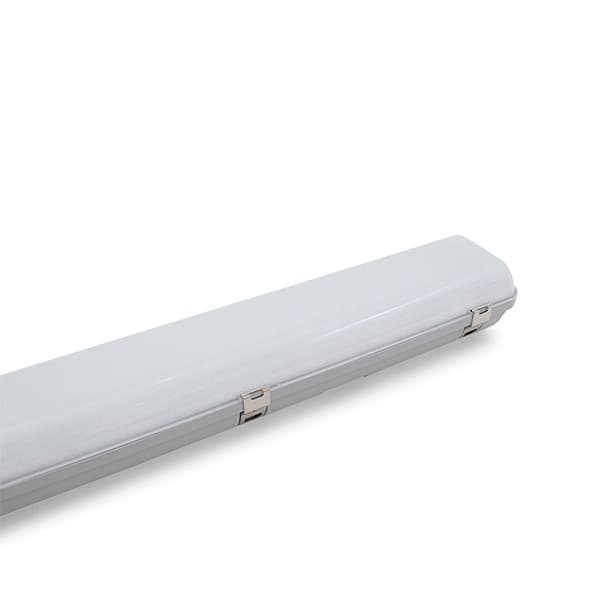

600mm LED Emergency Batten | Tri-CCT Configuration | IP65 Rated | Maintained Emergency Mode | by Ektor
The 600mm LED Emergency Batten is designed for reliable emergency lighting with a tri-CCT configuration offering 4000K, 5000K, and 6500K color temperatures. Ideal for commercial and industrial applications, this IP65 rated fixture ensures durability and performance, featuring a maintained emergency mode with a 90-minute duration and high system efficiency of up to 114 lm/W.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 600mm LED Emergency Batten, Tri-CCT Emergency Light, IP65 LED Batten, Maintained Emergency LED Batten, Surface Mount Emergency Light
Technical Specifications
- Dimensions (H x L x W): 70mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K colour temperatures
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 114 lm/W
- Inline switch and re-wireable terminal block wiring
- Non-dimmable fixed output driver with constant current mode
- Microwave sensor options available with adjustable settings
- LED lifetime greater than 60,000 hours (L70B10)
- Power factor of 0.9 and input voltage range 216-253Vac
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper emergency lighting functionality.
Applications
- Emergency lighting for commercial and industrial buildings
- Surface mounted lighting in corridors, stairwells, and exit routes
- Suitable for areas requiring IP65 rated fixtures and emergency maintained lighting
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- High efficiency LED technology reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- IP65 rating ensures durability and reduces maintenance needs
- Compliant with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 600mm LED Emergency Batten Tri-CCT Ver 2 is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
