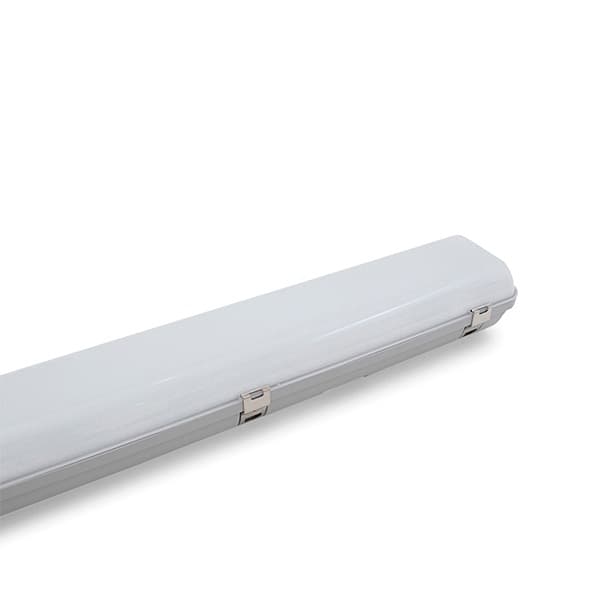

600mm LED Emergency Batten | Tri-CCT Adjustable | IP65 Rated | Microwave Sensor | by Ektor
The 600mm LED Emergency Batten is designed for reliable emergency lighting in commercial and industrial settings. Featuring adjustable Tri-CCT (4000K, 5000K, 6500K) and an IP65 rating for dust and water protection, this batten is perfect for corridors and exit routes. With a microwave sensor for enhanced functionality and a long LED lifetime of over 60,000 hours, it ensures safety and efficiency in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 600mm LED Emergency Batten, Tri-CCT Emergency Light, IP65 LED Batten Light, Sensor Emergency Batten, Ektor UMBRA LED Batten
Technical Specifications
- Dimensions (H x L x W): 70mm x 80mm x 600mm
- Weight: 1.5 kg
Key Features
- Tri-CCT (Colour Temperature) adjustable: 4000K, 5000K, 6500K
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Microwave sensor with adjustable detection range and hold time
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 114 lm/W
- Fixed output driver with power factor 0.9
- Non-dimmable with re-wireable terminal block
- Long LED lifetime >60000 hours (L70B10)
- Grey polycarbonate body and diffuser
- Operating temperature range -20 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal sensor configuration.
Applications
- Emergency lighting for commercial and industrial buildings
- Surface mounted lighting for corridors, stairwells, and exit routes
- Suitable for indoor and outdoor environments requiring IP65 protection
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- IP65 rating ensures durability and reduces maintenance needs
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available for registered users in defined regions. Warranty valid up to 25,000 operating hours.
Available Now
The Ektor UMBRA ADVANCED 600mm LED Emergency Batten with Tri-CCT and sensor is available for immediate purchase, ideal for emergency and general lighting in commercial and industrial environments.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
