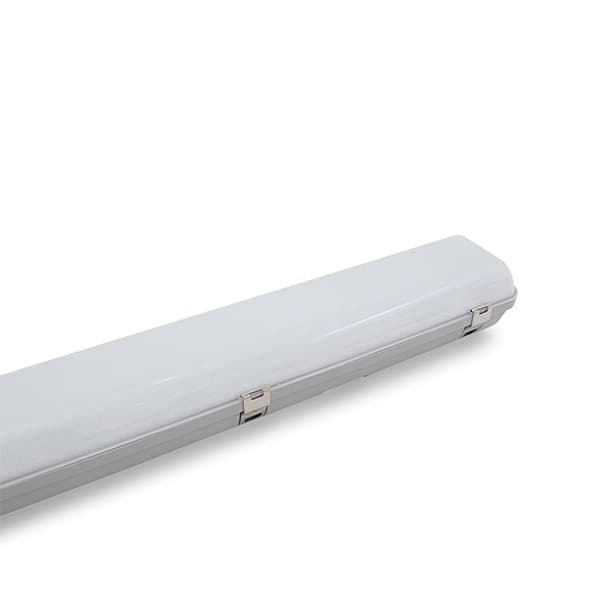

600mm LED Wide Body Batten | Tri-CCT | IP65 Rated | 114 lm/W Efficiency | by Ektor
The 600mm LED Wide Body Batten with Tri-CCT configuration offers exceptional versatility for commercial and industrial lighting. With an impressive efficiency of 114 lm/W and an IP65 rating for dust and water protection, this batten is perfect for both indoor and outdoor applications. Built to last with a long LED lifetime of over 60,000 hours, it ensures reliable performance in emergency lighting situations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 600mm LED Batten Light, Tri-CCT LED Batten, IP65 LED Batten, Emergency LED Batten Light, Surface Mount LED Batten
Technical Specifications
- Dimensions (H x L x W): 60mm x 600mm x 80mm
- Weight: 1.2 kg
Key Features
- High total system efficiency up to 114 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Tri-CCT configuration with selectable colour temperatures (4000K, 5000K, 6500K)
- Long LED lifetime greater than 60,000 hours (L70B10)
- Fixed output driver with power factor of 0.9
- Non-dimmable with re-wireable terminal block wiring
- Emergency maintained mode with 90 minutes duration and 400 lm output
- Microwave sensor option with adjustable hold time, detection area, and lux adjustment
- Grey polycarbonate body and diffuser
- Operating temperature range from -20 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Commercial and industrial lighting
- Surface mount installations in indoor and outdoor environments
- Emergency lighting applications with maintained emergency mode
- Warehouses, corridors, car parks, and general lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2: Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 8 years reduces waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite plus 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available for registered users in defined regions. Warranty covers up to 25,000 operating hours.
Available Now
The UMBRA Advanced 600mm LED Wide Body Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
