60A 3-Phase RJ12 Current Transformer | Class 1 Accuracy | 15 x 15mm Aperture | Compact Design by Eltech
60A 3-phase RJ12 current transformer with Class 1 accuracy and a 15 x 15mm aperture—ideal for power quality monitoring and electrical current measurement. Built for industrial and commercial systems, it ensures precise readings and efficient energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

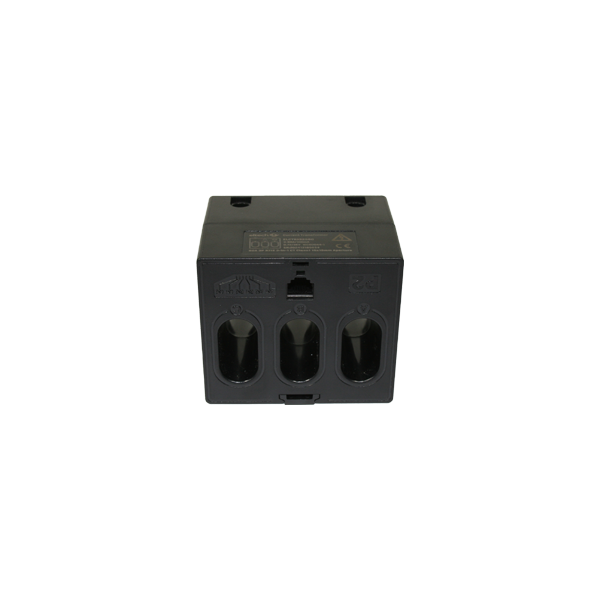

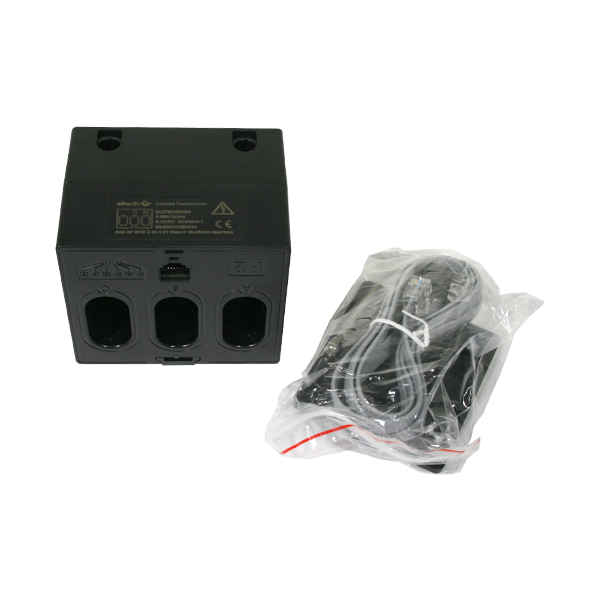

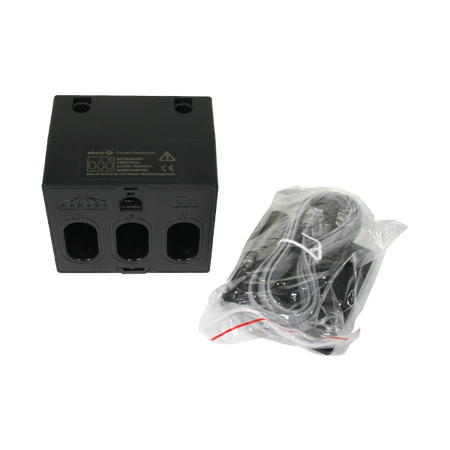

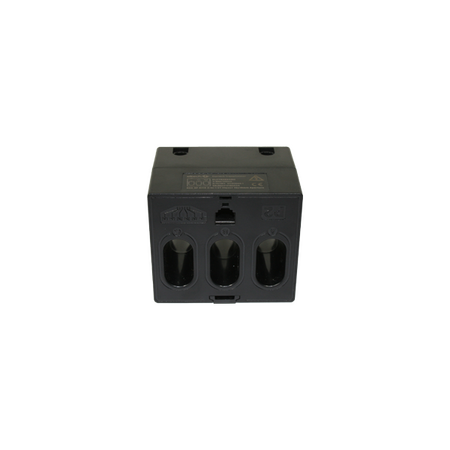

Product Name/Title: 60A 3P RJ12 3-in-1 CT Class 1 15 x 15mm Aperture
Brand: Eltech
SKU: ELCTRJ32560
Alternatively Known As: 60 Amp 3 Phase RJ12 Current Transformer, 3-in-1 CT, Class 1 Current Transformer
Technical Specifications
- Current Rating: 60A
- Accuracy Class: Class 1
- Aperture Size: 15 x 15mm
- Type: 3 Phase RJ12 3-in-1 Current Transformer
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Class 1 accuracy for precise current measurement
- 15 x 15mm aperture suitable for various conductor sizes
- 60A current rating
- 3-phase RJ12 3-in-1 design for compact installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure safety and compliance with electrical standards.
Applications
- Power quality monitoring
- Electrical current measurement
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Helps improve energy efficiency by enabling accurate current monitoring
- Supports power quality management to reduce energy waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eltech 60A 3P RJ12 3-in-1 Current Transformer is available now for immediate purchase. Ideal for power quality monitoring and electrical current measurement in industrial and commercial applications.
