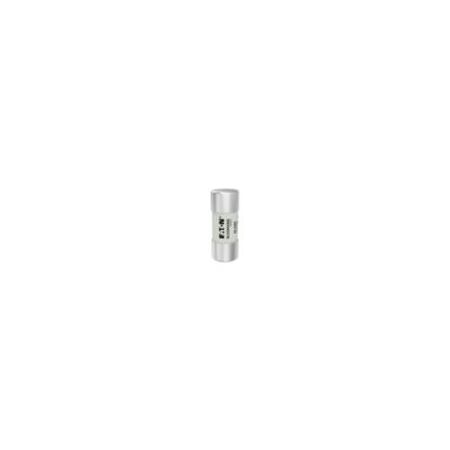

60A 415V AC House Service Fuse | Class gG/gL | 33 kA Breaking Capacity | Low Power Loss by Eaton
The 60A 415V AC house service fuse is designed for residential and commercial electrical protection, featuring a class gG/gL type for general purpose use and a breaking capacity of 33 kA. With low power loss of 4.3W, it's ideal for ensuring safety in electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 60A 415V AC House Service Fuse | Class gG/gL | 33 kA Breaking Capacity | Low Power Loss by Eaton
Brand: Eaton
SKU: 60KR85
Alternatively Known As: 60A 415V AC fuse, Eaton KR85 fuse, low voltage British standard fuse, house service fuse
Technical Specifications
- Amperage Rating: 60 A
- Voltage Rating: 415 V AC
- Fuse Type: KR85
- Class: gG/gL
- Breaking Capacity: 33 kA
- Construction: BS system C type II
- Power Loss: 4.3W
- Dimensions: 23 mm x 23 mm x 56 mm
- Weight: 58.1 g
- Dimensions (H x L x W): 23mm x 56mm x 23mm
- Weight: 0.0581 kg
Key Features
- 60A amperage rating suitable for house service applications
- 415V AC voltage rating
- BS system C type II construction
- Class gG/gL fuse type for general purpose protection
- Breaking capacity of 33 kA ensuring high fault current interruption capability
- Low power loss of 4.3W
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Low voltage electrical protection in residential and commercial electrical systems
- Protection of electrical circuits in industrial installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton 60A 415V AC House Service Fuse is available for immediate purchase, ideal for residential and industrial electrical protection applications.
