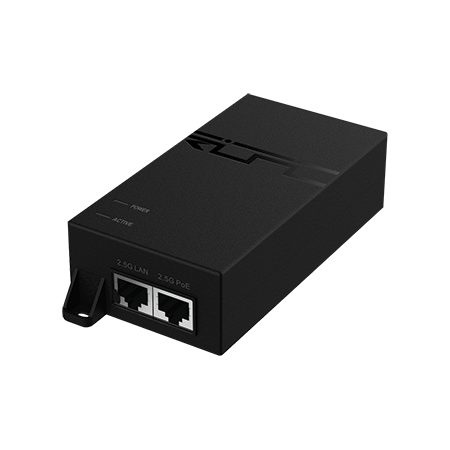

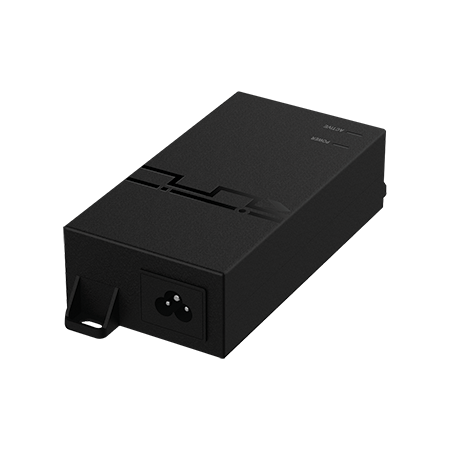

60W 2.5 Gigabit PoE++ Power Inserter | 802.3af/at/bt Compliant | Energy Efficient by Matchmaster
60W 2.5 Gigabit PoE++ power inserter with 802.3af/at/bt compliance—ideal for powering IP cameras, wireless access points, and VoIP phones. Built for energy efficiency, reducing the need for additional outlets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Output Voltage: 56V @ 1.08A
- Rated Voltage: 100-240V AC @ 50/60Hz
- Input Current: 1.5A@120VAC, 1.2A@240VAC
- Operating Temperature: 0 to 40° C
- Storage Temperature: -30 to 70°C
- Operating Humidity: 35 to 95% Noncondensing
- Surge Protection: Difference and Common Mode
- Dimensions (H x L x W): 32.6mm x 137.4mm x 62.3mm
- Weight: 0.225 kg
Key Features
- PoE++ (Type 3) power inserter delivering up to 60 Watts of power
- IEEE 802.3bt compliant with 2.5 Gbps ports supporting ultra high-speed data transfer
- Safe for low-power devices, delivering only the energy they need
- 2 x RJ45 MultiGigabit 10/100/1000/2500Mbps Ports
- Automatic detection and protection of non-standard Ethernet terminals
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Wireless access points
- SOHO switches
- IP phones
- Webcams
- PoE cameras
- PTZ cameras
Standards & Compliance
- CE, FCC, CCC certified
Environmental Benefits
- Efficient power delivery reduces energy waste.
Warranty Information
Standard warranty information not provided.
Available Now
The 60W 2.5 Gigabit PoE++ Power Inserter is available now for immediate purchase. Ideal for networking applications requiring efficient power delivery.
