Trade Discount 17%

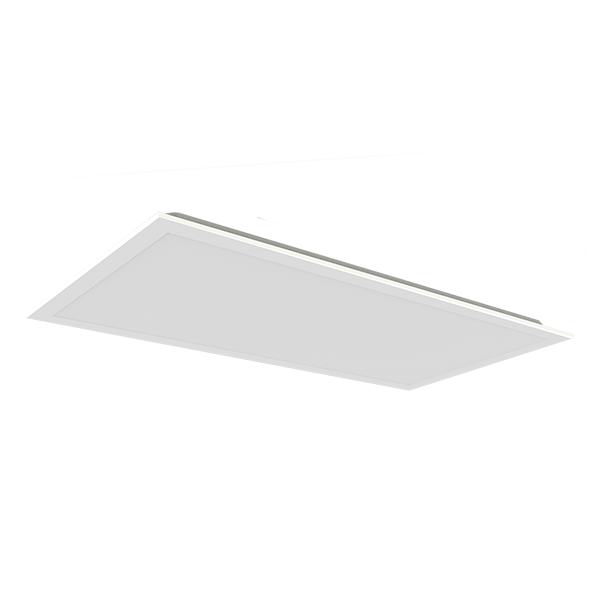

60W LED Backlit Panel 600 x 1200 | 100 lm/W Efficiency | IP40 Rated | Cool White Finish | by atom
The 60W LED Backlit Panel 600 x 1200 is designed for efficient indoor lighting, delivering up to 100 lm/W with a cool white color temperature. Ideal for commercial and residential applications, this panel features an IP40 rating for dust protection and a long LED lifetime of over 60,000 hours, ensuring reliable performance and reduced maintenance costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED ceiling panel light, LED backlit panel, recessed LED panel, 60 watt LED panel light, cool white LED panel
Technical Specifications
- Total system efficiency up to 100 lm/W
- IP40 rated with IC-4 insulation cover rating
- Operating temperature range -10 to 40 °C
- Input voltage 230Vac with 50 Hz frequency
- Power factor 0.9
- Colour temperature options: 4000K (Cool White) and 5700K (Daylight)
- Colour Rendering Index (CRI) >80
- Beam angle 90°
- LED voltage 36 V
- LED current varies by model from 450 mA to 1500 mA
- LED lifetime >60,000 hours (TM-21 report)
- Non-dimmable fixed output driver included
- Wiring via re-wireable 2-pin flex and plug, 900 mm length
- Dimensions (H x L x W): 35mm x 1200mm x 600mm
- Weight: 6 kg
Key Features
- High system efficiency up to 100 lm/W
- IP40 rated for indoor use
- IC-4 rated for safe insulation coverage
- Fixed installation type with recessed mounting
- Powder-coated steel body with polycarbonate diffuser
- Colour Rendering Index (CRI) greater than 80
- Low glare with UGR less than 19
- 3-step MacAdam ellipse for consistent colour quality
- Long LED lifetime greater than 60,000 hours
- Non-dimmable fixed output driver included
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe recessed mounting.
Applications
- Commercial office lighting
- Retail and hospitality lighting
- Educational and healthcare facilities
- Indoor general lighting in residential and industrial spaces
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Specific Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes promoting sustainability
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms and conditions.
Available Now
The Atom 60W LED Backlit Panel 600x1200mm Cool White is available for immediate purchase, ideal for commercial and indoor lighting applications.
