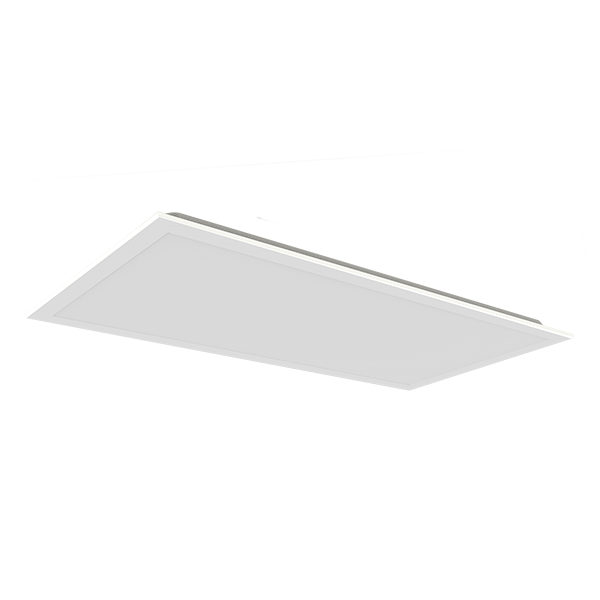

60W LED Backlit Panel 600 x 1200 | Daylight | IP40 Rated | 100 lm/W Efficiency | by atom
The 60W LED Backlit Panel 600 x 1200 is designed for efficient commercial lighting, delivering a bright daylight output with an impressive efficiency of up to 100 lm/W. Ideal for recessed installations in offices, retail spaces, and healthcare facilities, this panel features a durable powder-coated steel body and a polycarbonate diffuser, ensuring long-lasting performance and visual comfort.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Panel Light 600x1200, LED Backlit Ceiling Panel, Recessed LED Panel, Daylight LED Panel Light
Technical Specifications
- Total System Efficiency: up to 100 lm/W
- IP Rating: IP40
- IC Rating: IC-4
- Body Material: Powder-coated steel
- Diffuser Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Power Factor: 0.9
- Maximum Wattage: 62 W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >80
- Unified Glare Rating (UGR): <19
- Beam Angle: 90°
- LED Voltage: 36 V
- LED Current: up to 1500 mA depending on model
- LED Lifetime: >60,000 hours (TM-21 report)
- Colour Temperature: 5700 K (Daylight)
- Driver Type: Fixed output, non-dimmable
- Flex & Plug Length: 900 mm
- Wiring Type: Re-wireable flex & plug (2 pin)
- Product Design Life: 10 years at 12 hrs daily use
- Dimensions (H x L x W): 35mm x 1200mm x 600mm
- Weight: 5 kg
Key Features
- High system efficiency up to 100 lm/W
- IP40 rated with IC-4 rating for safe insulation coverage
- Fixed installation with powder-coated steel body and polycarbonate diffuser
- Colour Rendering Index (CRI) greater than 80 for quality light
- Low Unified Glare Rating (UGR) below 19 for visual comfort
- Long LED lifetime exceeding 60,000 hours
- Non-dimmable fixed output driver included
- Compliant with multiple AS/NZS standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial office lighting
- Retail and hospitality lighting
- Educational and healthcare facilities
- Indoor general lighting requiring recessed installation
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General Requirements
- AS/NZS 61347.2.13 – LED Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long operational lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
Standard 3 years return-to-base warranty. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 60W LED Backlit Panel 600x1200 - Daylight is available for immediate purchase, ideal for commercial and indoor recessed lighting applications.
