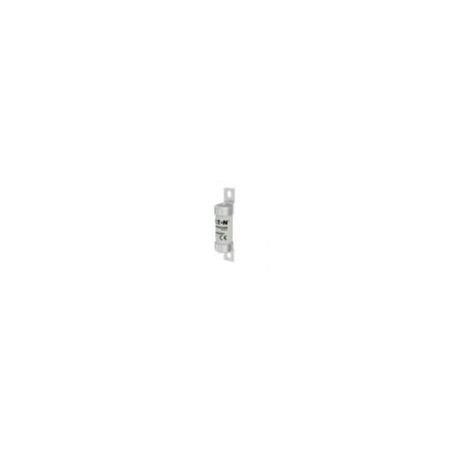

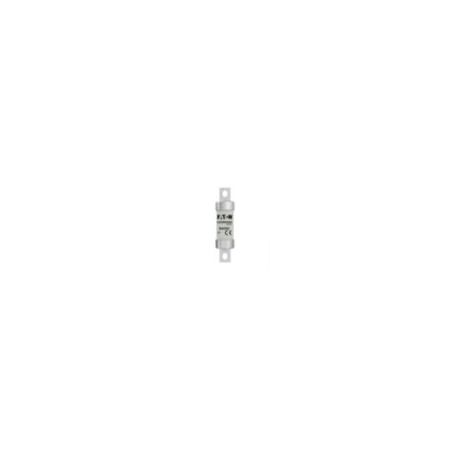

63AMP 500V AC BS88 gG Fuse | 80 kA Breaking Capacity | Class gG/gL | Offset Bolted Tags by Eaton
The 63AMP 500V AC BS88 gG fuse offers reliable circuit protection with an 80 kA breaking capacity and class gG/gL type for general purpose use. Ideal for industrial and commercial electrical installations, it features offset bolted tags for secure fitting and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 63AMP 500V AC BS88 gG Fuse | 80 kA Breaking Capacity | Class gG/gL | Offset Bolted Tags by Eaton
Brand: Eaton
SKU: BAO63
Alternatively Known As: 63A BS88 Fuse, 63 Amp British Standard Fuse, 500V AC gG Fuse, Eaton BAO63 Fuse
Technical Specifications
- Amperage Rating: 63 A
- Voltage Rating: 500 V AC
- Fuse Type: BAO, Class gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/A3
- Dimensions: 21 mm width x 22 mm height x 87 mm length
- Fitted with offset bolted tags
- Dimensions (H x L x W): 22mm x 87mm x 21mm
- Weight: 0.05 kg
Key Features
- 63 Ampere rating for reliable circuit protection
- 500V AC voltage rating suitable for low voltage applications
- Class gG/gL fuse type for general purpose protection
- Breaking capacity of 80 kA for high fault current interruption
- Offset bolted tags for secure fitting
- Complies with IEC 60269-2 and BS88 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse holder compatibility.
Applications
- Electrical protection in low voltage circuits
- Industrial and commercial electrical installations
- Use with CM63F Camaster fuse holder and RS63 Red spot fuse holder
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 63AMP 500V AC BS88 gG Fuse is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
