64 Channel NVR No PoE No HDD VIGI Ness

BRAND: Ness
SKU: 126-592
$1,115.50 List price: $1,487.30
+ −
30 Days Return Electricians Unlock Trade Access

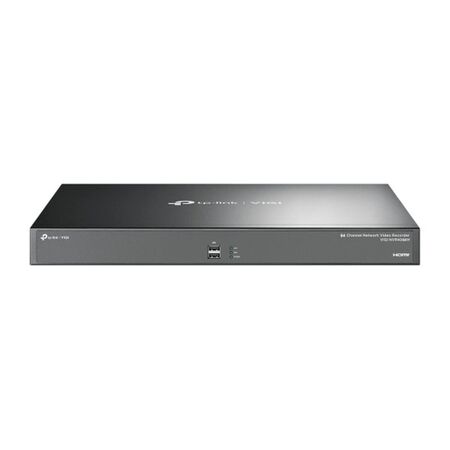

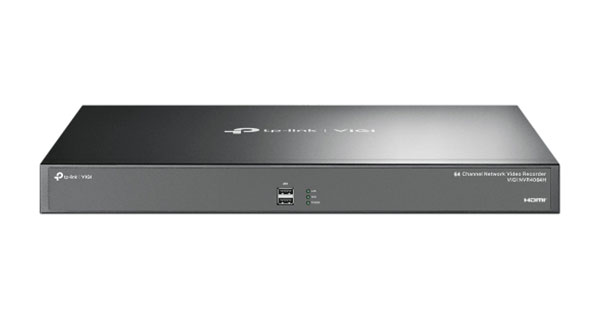

Ness VIGI network video recorder features 64 channels with no PoE ports. Supplied without HDD. Ideal for CCTV installs.

Alternatively Known As: TP-Link VIGI NVR4064H, 64-Channel IP Camera NVR, Non-PoE CCTV Recorder

Technical Specifications
  • Network Video Input: 64 channels
  • Network Bandwidth: 320 Mbps incoming and 320 Mbps outgoing in extended bandwidth mode
  • Network Interface: 2 x 10/100/1000 Mbps Ethernet ports
  • PoE Ports: None
  • Video Compression: H.265+, H.265, H.264+ and H.264
  • Maximum Recording Resolution: Up to 4K / 8 MP
  • Decoding Capability: Up to 16 channels at 2 MP or 8 channels at 4 MP
  • Synchronous Playback: Up to 16 channels, subject to total resolution
  • Video Outputs: 2 x HDMI and 1 x VGA
  • Storage Interface: 4 x SATA interfaces
  • Storage Capacity: Up to 16 TB per HDD
  • HDD Included: No
  • Audio Interface: 1-channel RCA input and 1-channel RCA output
  • Alarm Connections: 16 alarm inputs and 4 alarm outputs
  • Compatibility: ONVIF Profile S, T and G
  • Power Supply: 100–240 V AC, 50–60 Hz, 1.5 A
  • Maximum Power Consumption: 6.95 W without disk; 48.38 W with disk
  • Operating Temperature: -10 to 55 °C
  • Operating Humidity: 10–90% RH, non-condensing
  • Dimensions (H x L x W): 44mm x 330mm x 440mm
  • Weight: 4 kg
Key Features
  • Supports up to 64 network cameras
  • Non-PoE design for connection through separate network switches or PoE switches
  • Four internal SATA bays for expandable surveillance storage
  • 4K HDMI output with additional HDMI and VGA display outputs
  • H.265+ compression helps reduce storage and network bandwidth requirements
  • Dual Gigabit Ethernet ports support multi-address, fault-tolerance and port aggregation modes
  • Supports remote monitoring through mobile, web and PC software
  • Includes motion, intrusion, line-crossing, human and vehicle detection functions when supported cameras are connected
  • Rack-mountable 1U chassis with mounting hardware included
  • Supplied without a hard disk drive
Professional Installation Requirements
  • Installation should be completed by a suitably qualified CCTV or network security installer. Mains connection, rack mounting, network configuration and camera commissioning must follow applicable Australian electrical, communications and site safety requirements.
Applications
  • Commercial CCTV surveillance systems
  • Warehouse, retail and office security monitoring
  • Large-scale IP camera installations
  • Industrial and multi-site video surveillance
  • Centralised recording for ONVIF-compatible network cameras
Standards & Compliance
  • AS/NZS 62368.1 for the safety of audio, video, information and communication technology equipment; confirm the applicable certification edition and RCM documentation for the supplied Australian model
Environmental Benefits
  • H.265+ video compression can reduce storage requirements and network traffic compared with older compression formats
  • Expandable HDD storage allows capacity to be matched to the installation, helping avoid unnecessary hardware
  • RoHS-related compliance documentation is available through the Ness distribution and compliance programme; verify model-specific documentation where required
Warranty Information

3 years from date of purchase under Ness Corporation's warranty for Ness manufactured or supplied products, unless otherwise specified.

Available Now

Available through Ness Corporation and authorised Australian security and CCTV distributors.
