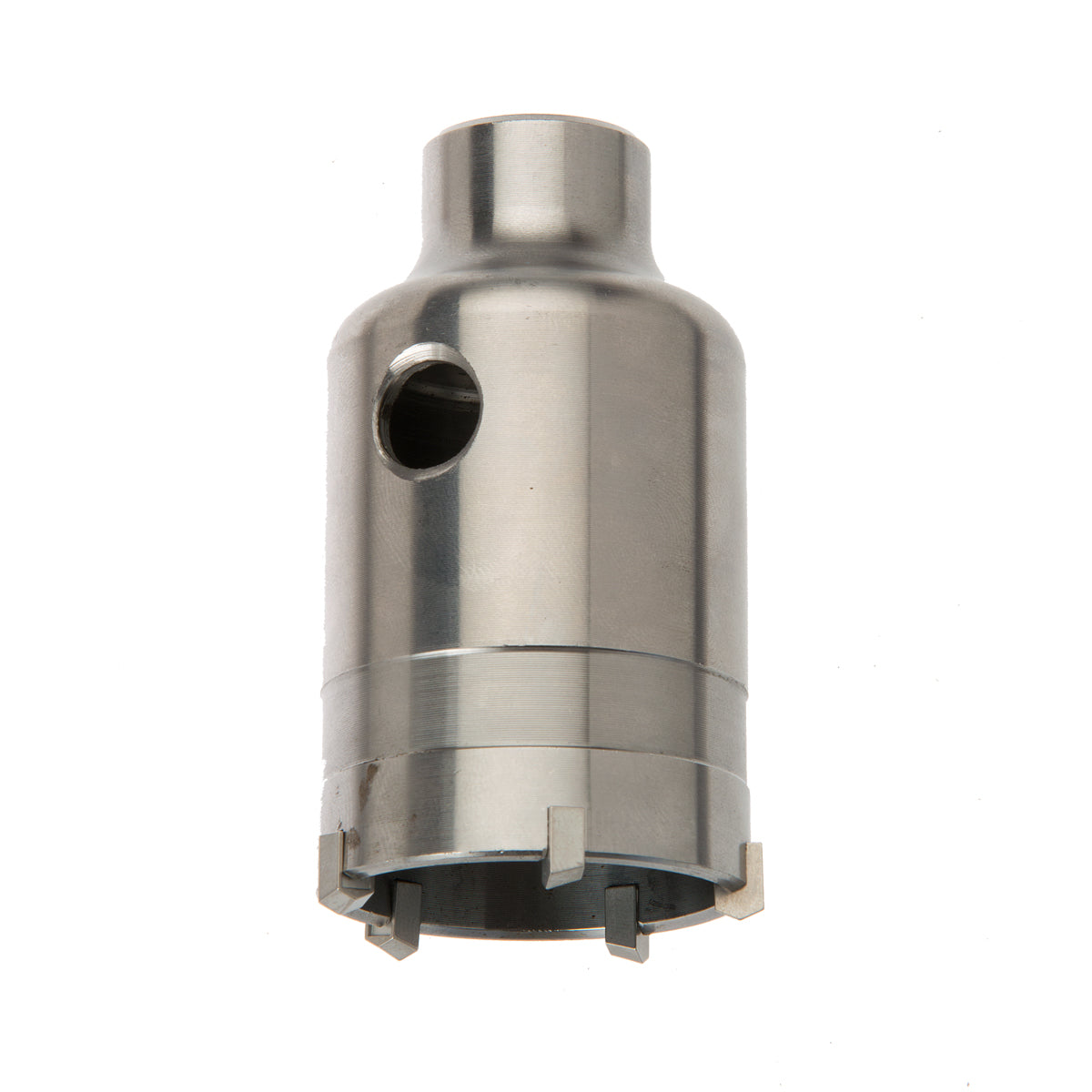

66mm HSM Core Drill | SDS Plus Compatible | Ultra Thin 2.5mm Wall | Tungsten Carbide Tips | by Promac
The 66mm HSM Core Drill is designed for SDS Plus machines, featuring an ultra-thin 2.5mm wall for lightweight performance and rapid action drilling. Ideal for plumbing and electrical applications, this core drill excels in heavy-duty concrete, masonry, and natural stone. With ultra-hard tungsten carbide tips, it ensures increased wear resistance and efficiency, making it a must-have for professionals in construction and renovation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 66mm HSM Core Drill | SDS Plus Compatible | Ultra Thin 2.5mm Wall | Tungsten Carbide Tips | by Promac
Brand: Promac
SKU: CL66S
Alternatively Known As: 66mm Core Drill Bit, SDS Plus Core Drill, Masonry Core Drill, HSM Core Drill
Technical Specifications
- Machine best suited for SDS Plus
- Core drill wall thickness: 2.5mm ultra thin wall
- Teeth material: Ultra hard tungsten carbide tips
- Operating action: Rotary and Impact mode or Rotary only mode
- Thread: M16 x 2.0
- Recommended speed: Larger diameter cores require slower speed if speed regulation is possible
- Material recommendations: General concrete, hard bricks, soft bricks, lightweight blocks, natural stone, constructional granite, limestone
- Made in Sheffield, UK
- Dimensions (H x L x W): 100mm x 100mm x 66mm
- Weight: 0.3 kg
Key Features
- Rapid action core drill matched to SDS Plus machines
- Speeds up to 35% faster with minimal breakthrough
- Lightweight 2.5mm ultra thin wall design, 50% lighter than traditional core drills
- Unique Armeg original ball-locking & pilot drill system for quick pilot and arbor interchange
- Precision machined arbor flats for easy grip or spanner use
- Ultra hard tungsten carbide tips for increased wear resistance
- Machined Tommy Bar hole for easy disconnection of arbor and core drills
- Operates in rotary and impact mode or rotary only mode
Professional Installation Requirements
- Use with SDS Plus or Hex driven machines by trained professionals. Follow safety guidelines for core drilling operations.
Applications
- Plumbing and electrical applications in brick, block, masonry
- Heavy duty concrete drilling
- General concrete drilling
- Hard and soft bricks
- Lightweight blocks
- Natural stone, constructional granite, limestone
- Waste pipes, water feed pipes, cable entry/exit
- Flue passage, extractor fans, exhausts, dust extractor ducting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Lightweight design reduces energy consumption during use
- Durable tungsten carbide tips extend tool life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Promac warranty terms for details.
Available Now
The Promac 66mm HSM Core Drill is available for immediate purchase, ideal for professional plumbing, electrical, and construction drilling applications.
