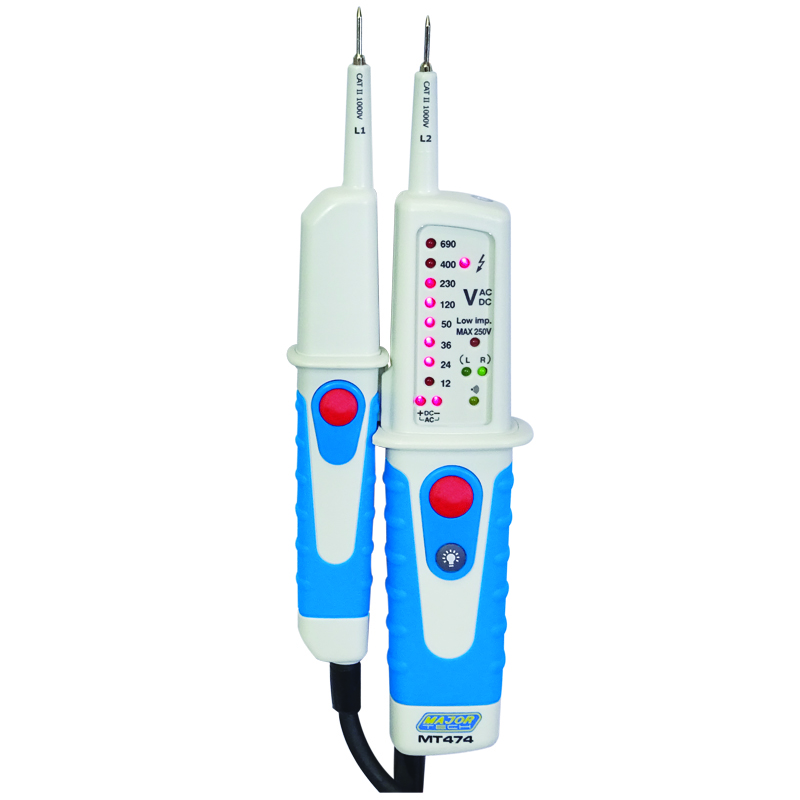

690V AC/DC Voltage Tester | 12V to 690V Range | CAT IV 600V & CAT III 1000V Safety | LED Display by Majortech

BRAND: Major Tech

SKU: MT474

$121.20 List price: $156.00

+ −

30 Days Return Delivery Options

The 690V AC/DC Voltage Tester is designed for accurate voltage measurement from 12V to 690V, featuring a clear LED display and compliance with CAT IV 600V and CAT III 1000V safety standards. Ideal for electricians, it simplifies electrical testing in residential, commercial, and industrial environments.

Description

Product Name/Title: 690V AC/DC Voltage Tester | 12V to 690V Range | CAT IV 600V & CAT III 1000V Safety | LED Display by Majortech

Brand: Majortech

SKU: MT474

Alternatively Known As: Voltage Tester, AC/DC Voltage Detector, Phase Rotation Tester, Continuity Tester, Electrical Voltage Meter

Technical Specifications

Function: AC Voltage
Voltage Range: 12V to 690V
Accuracy: ±30%
Low Impedance Load: Approximately 6kΩ at 690V
Continuity Measurement: Up to 200kΩ
Safety Category: CAT IV 600V, CAT III 1000V
Dimensions (H x L x W): 40mm x 30mm x 150mm
Weight: 0.2 kg

Key Features

Automatic power on when voltage is applied
Voltage displayed on incrementing red LEDs
Polarity indication for DC voltage
Low impedance test with approximately 6kΩ load at 690V
Phase rotation direction indication (L = anticlockwise, R = clockwise)
CAT IV 600V and CAT III 1000V safety standards compliance

Professional Installation Requirements

Recommended to be used by qualified electricians for accurate and safe measurements.

Applications

Electrical testing in residential, commercial, and industrial environments
Voltage measurement for AC and DC systems up to 690V
Phase rotation detection in three-phase systems
Continuity testing up to 200kΩ
Single pole phase testing

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Reduces the need for multiple testing devices, minimizing electronic waste
Low power consumption with automatic power on/off feature

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Majortech 690V AC/DC Voltage Tester MT474 is available now for immediate purchase. Ideal for electricians and technicians in residential, commercial, and industrial electrical testing.
