6A Wire Protect Terminal Strip | 415V Voltage Rating | Flame-Retardant Polyamide | 12-Way Configuration by Cabac

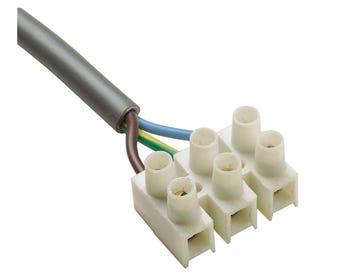

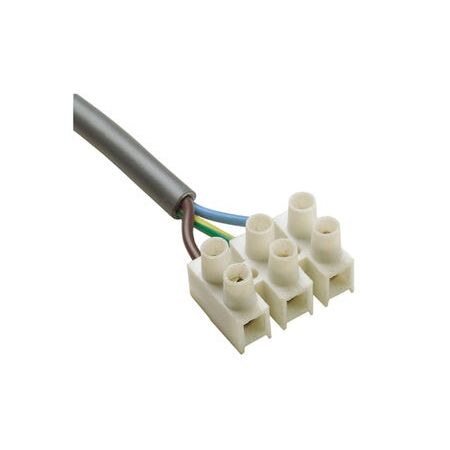

The Cabac 6A Wire Protect Terminal Strip offers secure and durable electrical connections with flame-retardant Polyamide 66 construction and nickel-plated brass terminals, ideal for control panels and enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6A Wire Protect Terminal Strip
Brand: Cabac
SKU: TB6/12WAY
Alternatively Known As: Terminal Block Strip, Electrical Terminal Block, Wire Protect Terminal Strip, Terminal Connector Strip
Technical Specifications
- Voltage Rating: 415V
- Maximum Operating Temperature: 105°C
- Material: Polyamide 66 (flame-retardant)
- Screw Type: Chrome-plated steel
- Terminal Material: Nickel-plated brass with wire protector plate
- Configuration: 12-way strips (modifiable as required)
- Dimensions (H x L x W): 20mm x 30mm x 150mm
- Weight: 0.1 kg
Key Features
- Manufactured from flame-retardant Polyamide 66 for durability and electrical insulation
- Nickel-plated brass terminals with wire protector plate for enhanced conductivity and mechanical integrity
- Chrome-plated steel screws ensure secure wire clamping
- Supplied in 12-way strips, easily cut to required lengths
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and secure connections.
Applications
- General electrical wiring and termination
- Industrial control panels and distribution boards
- Equipment wiring and power distribution
- Low to medium voltage electrical connections
- Electrical enclosures and junction boxes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame-retardant and durable materials reduce the need for frequent replacements
- Nickel-plated terminals resist corrosion, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac 6A Wire Protect Terminal Strip is available now for immediate purchase. Ideal for electrical wiring, control panels, and power distribution applications.
