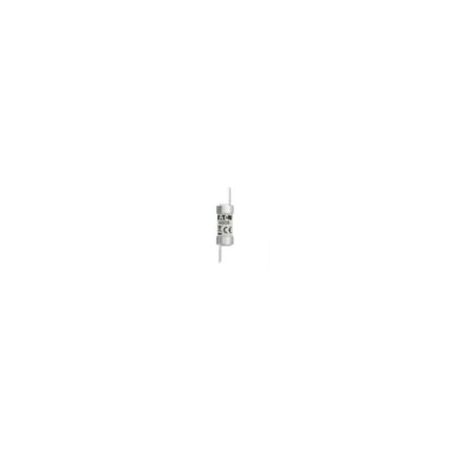

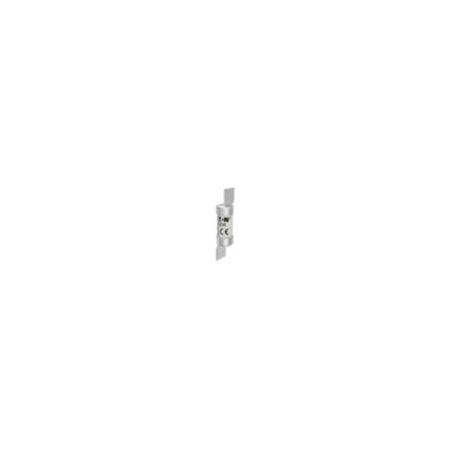

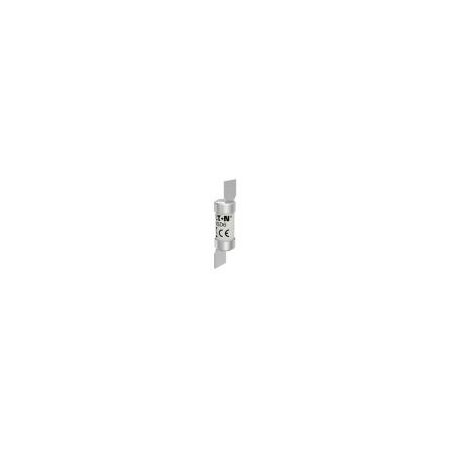

6AMP BS88 Fuse | 550V AC | 80kA Breaking Capacity | gG/gL Class by Eaton
The 6AMP BS88 fuse offers a 550V AC voltage rating and an impressive 80kA breaking capacity—ideal for low voltage electrical protection in industrial and commercial systems. Built for compatibility with 32NNS Safeloc and SC32 Safeclip fuse holders, it ensures secure fitting and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6AMP BS88 Fuse | 550V AC | 80kA Breaking Capacity | gG/gL Class by Eaton
Brand: Eaton
SKU: NSD6
Alternatively Known As: 6 Amp BS88 Fuse, 6A 550V AC Fuse, Eaton NSD6 Fuse, Low Voltage British Standard Fuse
Technical Specifications
- Amperage Rating: 6 A
- Voltage Rating: 550 V AC
- Fuse Type: NSD
- Class: gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/F1
- Suitable for: 32NNS Safeloc and SC32 Safeclip fuse holders
- Fitted with: Offset bladed tags
- Certifications: IEC 60269-2, BS88
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 14mm x 60mm x 14mm
- Weight: 0.016 kg
Key Features
- 6 Ampere current rating
- 550 Volt AC voltage rating
- BS88/F1 construction standard
- Class gG/gL fuse type for general purpose protection
- Breaking capacity of 80 kA
- Offset bladed tags for secure fitting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse holder compatibility.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Suitable for use with 32NNS Safeloc and SC32 Safeclip fuse holders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Eaton 6AMP 550V AC BS88 Fuse NSD6 is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
