6.0m Octagonal Hinged Light Pole | Ø60mm Top Diameter | 4mm Thickness | Easy Access Maintenance | by Cornick
The 6.0m Octagonal Hinged Light Pole is designed for versatile applications such as street lighting and CCTV surveillance. With a Ø60mm top diameter for mounting lights or panels and a robust 4mm thickness, this pole ensures durability and stability. Its hinged design allows for easy access maintenance, making it ideal for solar-powered systems and reducing reliance on grid electricity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6.0m Octagonal Hinged Light Pole | Ø60mm Top Diameter | 4mm Thickness | Easy Access Maintenance | by Cornick
Brand: Cornick
SKU: SLR-POL6-2
Alternatively Known As: Hinged Light Pole, Octagonal Light Pole, Solar Light Pole, CCTV Light Pole

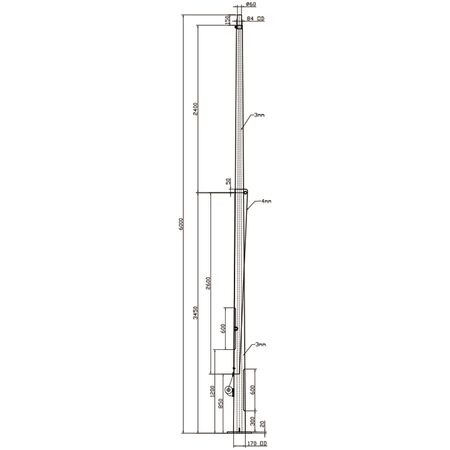

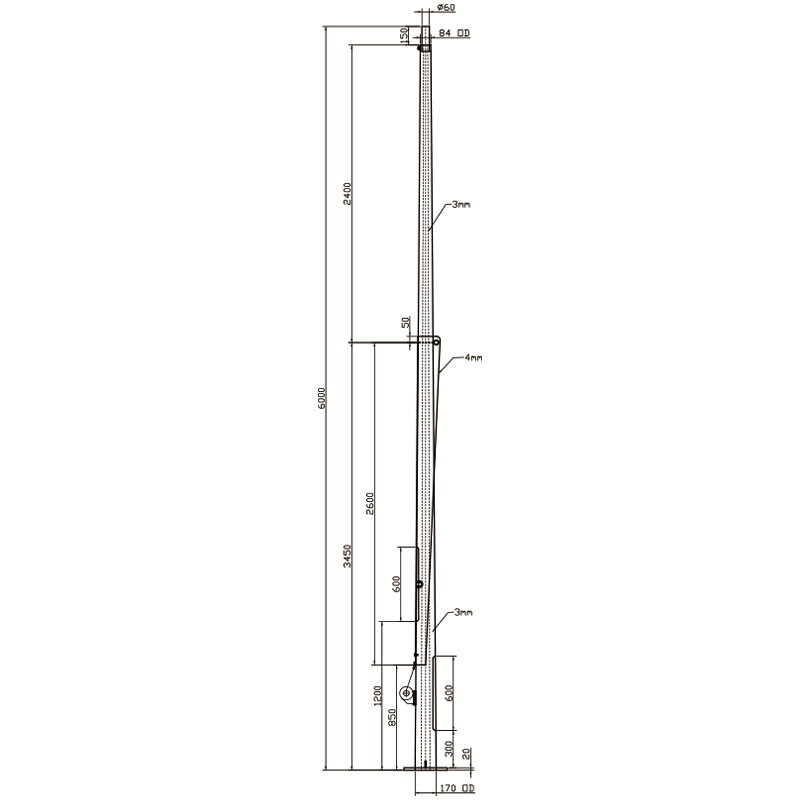

Technical Specifications
- Top diameter: Ø60mm for light or panel mounting
- Pole thickness: 4mm, 3mm after hinge
- Bottom diameter: Ø170mm (A/F)
- Hinge height: 3450mm

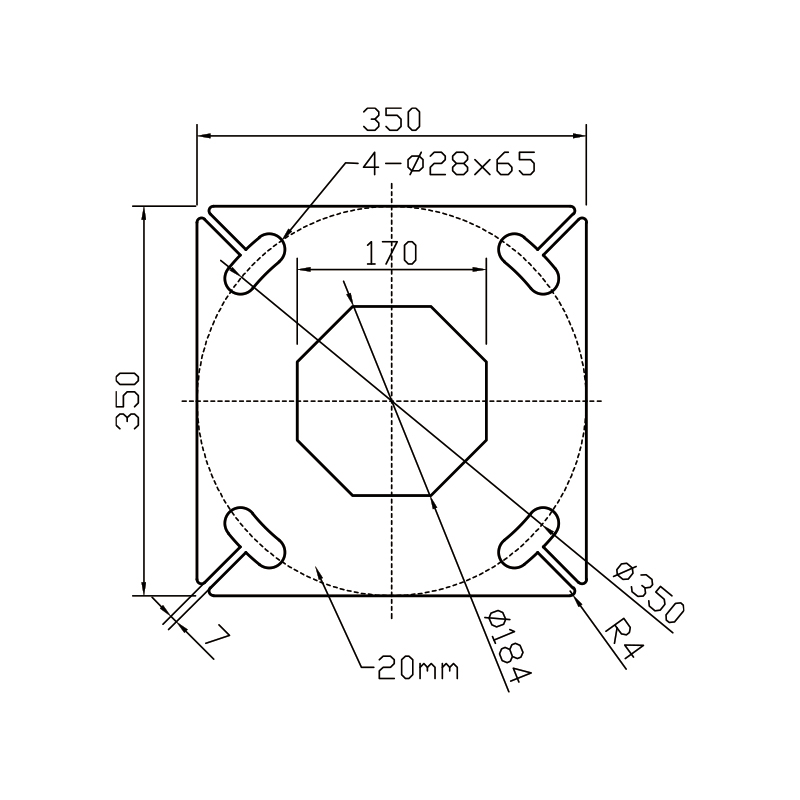

- Bolt template: 350 x 350mm, 20mm hot-dipped galvanized

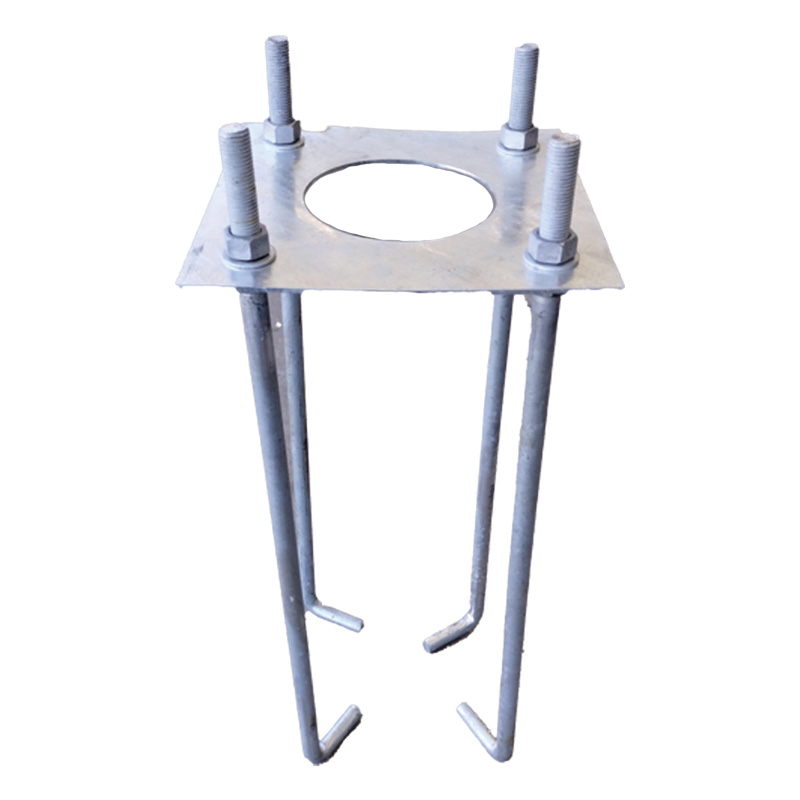

- Anchor bolts: 4 x M24 1000mm hot-dipped galvanized

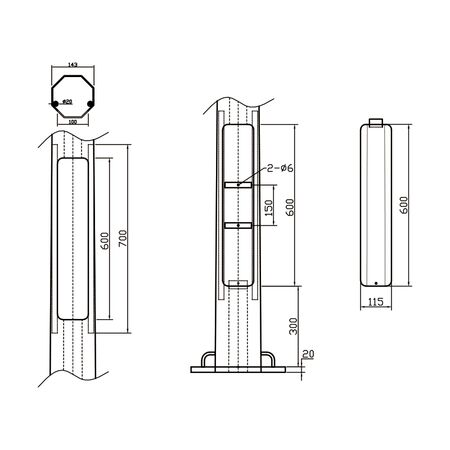

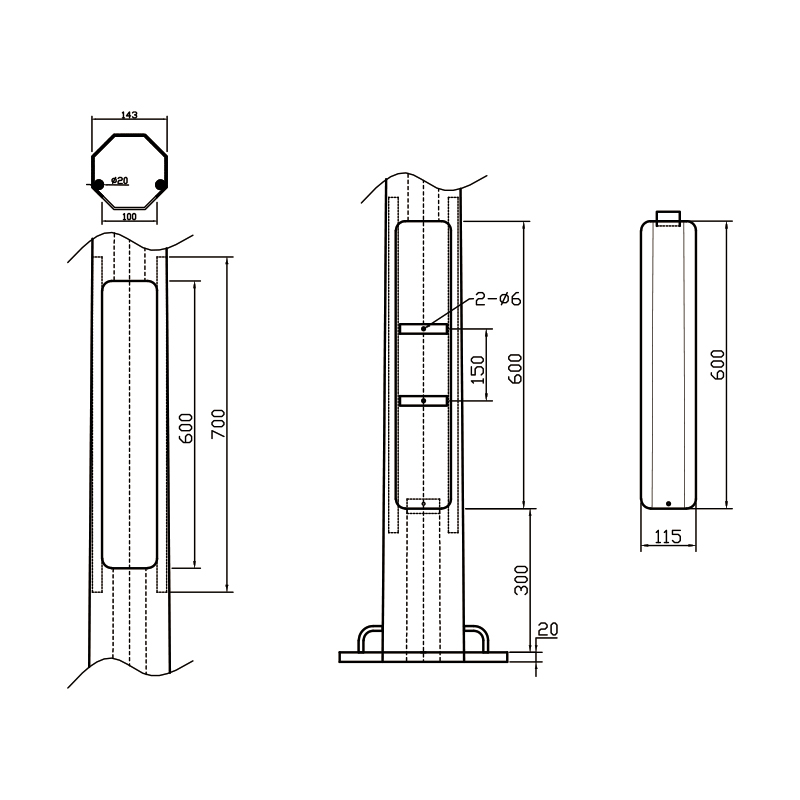

- Access panel at base for maintenance
- Dimensions (H x L x W): 6000mm x 170mm x 170mm
- Weight: 131 kg
Key Features

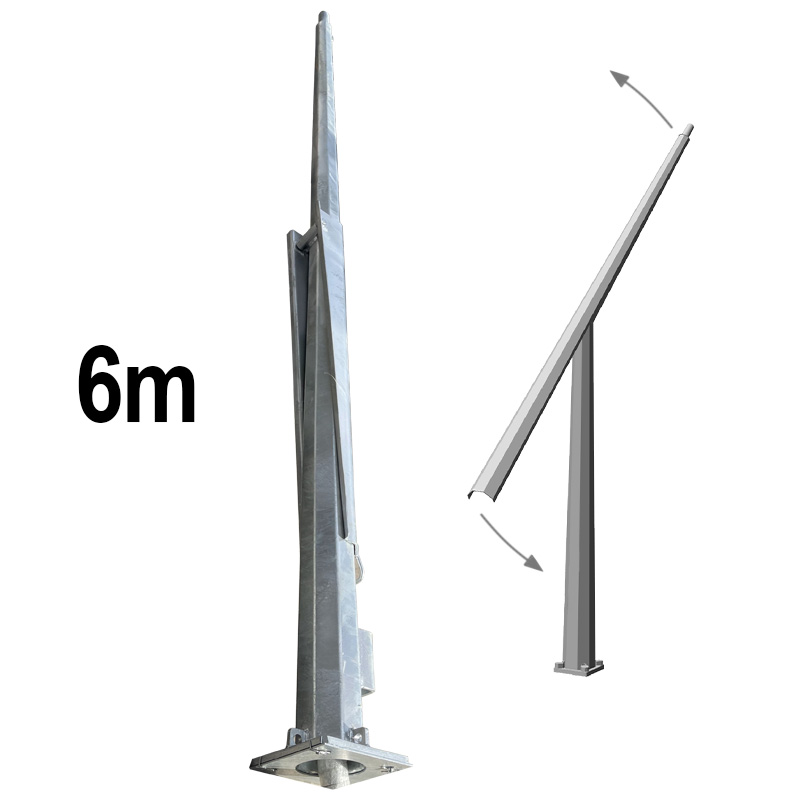

- 6.0m octagonal hinged light pole design
- Ø60mm top diameter for mounting lights or panels
- 4mm thickness reducing to 3mm after hinge
- Ø170mm bottom diameter
- Hinge height of 3450mm for easy access
- Includes 350 x 350mm bolt template, 20mm hot-dipped galvanized
- Includes 4 x M24 1000mm hot-dipped galvanized anchor bolts
- Access panel at base for easy maintenance
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure structural safety and compliance with local regulations.
Applications
- Street lighting
- CCTV surveillance systems
- Solar powered lighting and equipment
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Supports solar powered systems reducing reliance on grid electricity
- Durable galvanized steel construction extends product life and reduces waste
Warranty Information
Warranty information available upon request from the manufacturer.
Available Now
The Cornick 6.0m Octagonal Hinged Light Pole is available for immediate purchase, ideal for solar powered systems, street lighting, and CCTV surveillance applications.
Lighting Requirement Calculator
This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
