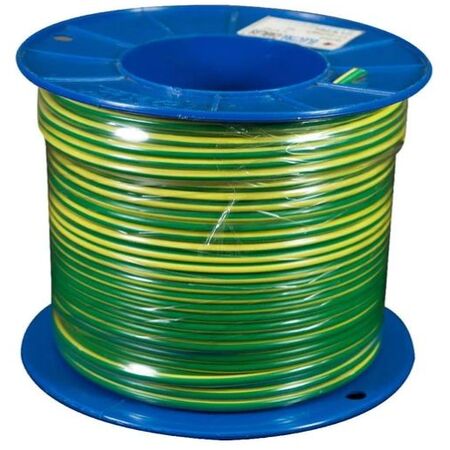

6mm Earth Green Yellow Building Wire | Stranded Copper | PVC Insulation | 100m Roll | by Electra Cables
6mm Earth Green Yellow Building Wire is designed for reliable earthing in residential and commercial electrical installations. Featuring a stranded copper conductor for flexibility and PVC insulation for safety, this 100m roll is perfect for various wiring applications, ensuring compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6mm Earth Green Yellow Building Wire | Stranded Copper | PVC Insulation | 100m Roll | by Electra Cables
Brand: Electra Cables
SKU: SR1060-100G/Y
Alternatively Known As: 6mm earth wire, green yellow earth cable, 6mm building wire, earth cable 100m roll, 6mm² earthing wire
Technical Specifications
- Conductor Size: 6mm²
- Conductor Type: Stranded copper (7/1.04mm)
- Insulation: PVC, green/yellow
- Voltage Rating: 450/750V
- Length: 100m roll
- Operating Temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 5.5 kg
Key Features
- 6mm² cross-sectional area for reliable earthing
- Green/yellow insulation for easy identification as earth wire
- Stranded copper conductor (7/1.04mm) for flexibility and durability
- Supplied in a 100m roll for convenience
- PVC insulation for enhanced safety and longevity
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
- Residential and commercial electrical installations
- Earthing systems for switchboards and distribution boards
- General wiring for industrial and construction projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- PVC insulation is lead-free and compliant with RoHS standards
- Copper conductor is recyclable, reducing environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for use in residential, commercial, and industrial earthing and wiring applications.
