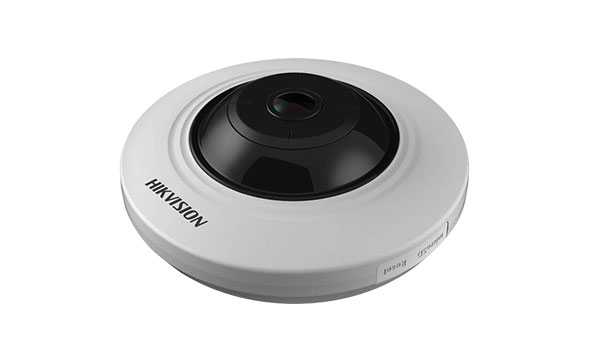

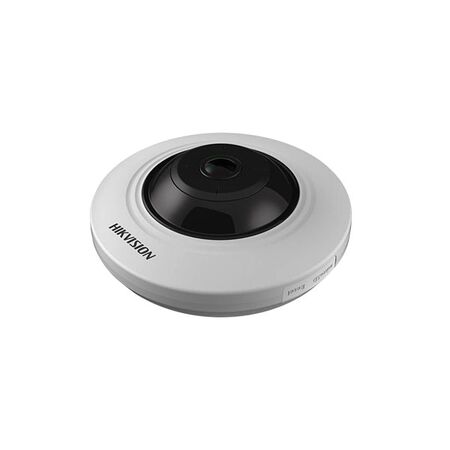

6MP 360 Degree Panoramic Camera 1.05mm PanoVu Hikvision
Hikvision PanoVu panoramic camera features 6MP resolution, 360 degree view and a 1.05mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PanoVu 6MP Panoramic Camera, DS-2CD6362F-IS, 6MP Fisheye CCTV Camera, 360° IP Camera
Technical Specifications
- Image Resolution: 6 MP, up to 3072 × 2048
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Manufacturer datasheet specifies 1.27 mm; source title states 1.05 mm
- Field of View: 360° ceiling or table mount; 180° wall mount
- Video Compression: H.264 and MJPEG
- Frame Rate: Up to 25 fps at 3072 × 2048
- Night Vision: Integrated IR illumination up to 15 m
- Wide Dynamic Range: Digital WDR
- Noise Reduction: 3D DNR
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power Supply: 12 VDC or IEEE 802.3af PoE
- Maximum Power Consumption: 12 W
- On-board Storage: microSD, microSDHC or microSDXC up to 128 GB
- Audio: Built-in microphone and speaker; -S variant adds audio input and output
- Protocols and Integration: ONVIF Profile S and Profile G, ISAPI
- Protection: IP66 and up to IK10 for -V outdoor variant
- Dimensions (H x L x W): 43.8mm x 164mm x 152.8mm
- Weight: 1.4 kg
Key Features
- 360° panoramic coverage when ceiling or table mounted
- 6MP imaging for detailed wide-area surveillance
- Fisheye view with selectable panoramic, PTZ and multi-view display modes
- Integrated IR illumination for low-light monitoring
- Supports PoE for simplified network installation
- Motion detection, privacy masking and digital WDR
- microSD recording and network-attached storage support
- ONVIF compatibility for integration with compatible video management systems
Professional Installation Requirements
- Installation should be carried out by a suitably qualified CCTV or network technician. Configure the camera using IEEE 802.3af PoE or 12 VDC, provide suitable network cabling, and confirm mounting orientation and local Australian electrical and communications requirements. Any mains-powered network equipment must be installed in accordance with applicable regulations.
Applications
- Retail premises and commercial buildings
- Warehouses, foyers and reception areas
- Schools, offices and public facilities
- Wide-area indoor CCTV surveillance
- Entrances, corridors and open-plan spaces requiring panoramic coverage
Standards & Compliance
- AS/NZS 62368.1:2022 - applicable audio, video, information and communications technology equipment safety standard; verify the specific product declaration and RCM documentation
- AS/NZS CISPR 32 - applicable electromagnetic compatibility framework for multimedia and network equipment; verify the specific product declaration
Environmental Benefits
- 360° coverage can reduce the number of cameras required for some wide-area surveillance layouts
- PoE operation can simplify cabling and reduce the need for separate local power supplies
- Metal camera components are potentially recyclable at end of service life
- microSD and network recording options can reduce reliance on dedicated recording hardware in smaller installations
- Low maximum power consumption of approximately 12 W supports lower operating energy use than multiple conventional cameras
Warranty Information
Hikvision Australia warranty support is provided through authorised distribution partners and is subject to the applicable product warranty terms, proof of purchase and authorised supply channel. Confirm the warranty period for the specific Australian SKU before purchase.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors, subject to regional model availability.
