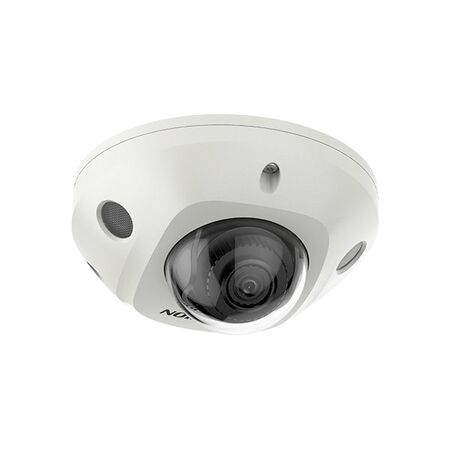

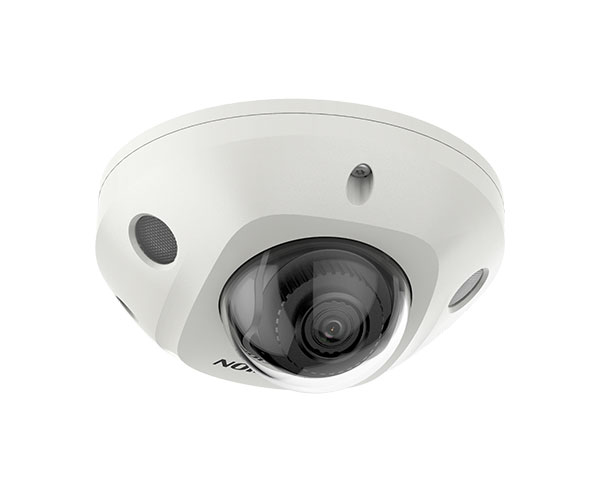

6MP AcuSense Mini Dome Camera 2.8mm Hikvision
Hikvision AcuSense mini dome camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP AcuSense Mini Dome, DS-2CD2566G2-I(S), 6MP IR IP Dome Camera
Technical Specifications
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Maximum Resolution: 3200 × 1800 pixels
- Lens: Fixed 2.8mm lens
- Field of View: 105° horizontal, 55° vertical, 127° diagonal
- Minimum Illumination: 0.003 Lux colour, 0 Lux with IR
- Night Vision: Up to 30m infrared illumination
- Wide Dynamic Range: 120dB true WDR
- Video Compression: H.265+, H.265, H.264+ and H.264
- Frame Rate: Up to 25fps at 50Hz or 30fps at 60Hz
- Smart Detection: Human and vehicle classification using deep learning
- Network Interface: RJ45 10/100M Ethernet
- Power Supply: 12V DC or PoE IEEE 802.3af Class 3
- Maximum Power Consumption: 6W
- Protection Rating: IP67 water and dust resistance
- Impact Protection: IK08 vandal resistance
- Audio: Built-in microphone and audio interface on -IS model
- Storage: MicroSD card support up to 512GB
- Dimensions (H x L x W): 57.4mm x 110mm x 110mm
- Weight: 0.375 kg
Key Features
- 6MP image resolution for detailed surveillance footage
- AcuSense human and vehicle target classification
- 2.8mm wide-angle lens for broad area coverage
- Powered-by-DarkFighter low-light imaging
- 120dB true WDR for challenging backlight conditions
- 30m IR night vision with smart supplementary lighting
- H.265+ compression reduces bandwidth and storage requirements
- IP67 weather resistance for indoor and outdoor installations
- IK08 vandal-resistant housing
- PoE support for combined network and power connection
- Built-in microphone and audio/alarm interfaces on the DS-2CD2566G2-IS variant
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or network technician. PoE or 12V DC power, structured network cabling, system configuration and camera positioning should be completed in accordance with applicable electrical, cabling and CCTV installation requirements.
Applications
- Residential security monitoring
- Commercial premises and retail stores
- Office and warehouse surveillance
- Building entrances, foyers and corridors
- Covered outdoor areas, eaves and building façades
- Human and vehicle detection for perimeter security
Standards & Compliance
- RCM approval to AS/NZS CISPR 32:2015 for electromagnetic compatibility
- Applicable CCTV system standard: AS/NZS 62676.1.1:2020
- Applicable camera image-quality standard: AS/NZS 62676.5:2020
- Installation may also require compliance with AS/NZS 3000:2018 and relevant customer cabling requirements
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- RoHS and REACH-related environmental compliance is specified by the manufacturer
- IP67 and IK08 protection can extend service life and reduce replacement waste in demanding installations
- PoE operation reduces the need for separate power cabling and associated installation materials
Warranty Information
Typically supplied with a 3-year manufacturer warranty through Australian authorised distribution channels, subject to the seller’s terms, product region and proof of purchase. Hikvision’s separately published 5-year programme applies to specified premium project-oriented product series and should not be assumed for this model.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors; confirm current regional stock and model suffix before ordering.
