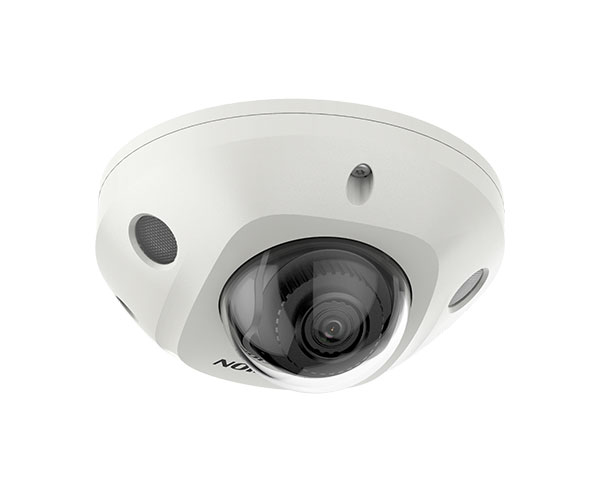

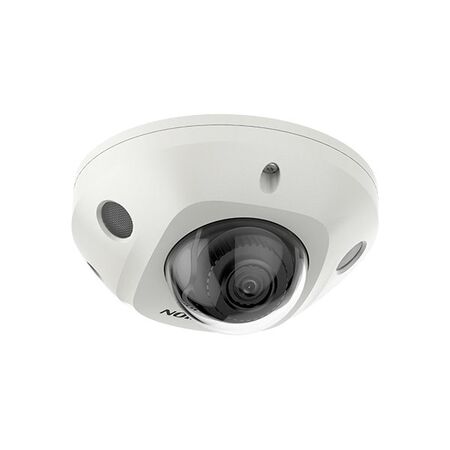

6MP AcuSense Mini Dome Camera 4mm Hikvision
Hikvision AcuSense mini dome camera features 6MP resolution and a 4mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP AcuSense Fixed Mini Dome IP Camera, Hikvision 6MP Indoor/Outdoor Dome CCTV Camera
Technical Specifications
- Model: DS-2CD3566G3-ISY(4mm)(B)
- Maximum Resolution: 3200 x 1800 pixels, 6MP
- Lens: 4mm fixed lens
- Night Vision: Up to 30m EXIR infrared illumination
- Wide Dynamic Range: 120dB true WDR
- Video Compression: H.265+, H.265, H.264+ and H.264
- AcuSense Analytics: Human and vehicle classification
- Storage: MicroSD card support up to 512GB
- Network Interface: 1 x RJ45 10/100Mbps
- Power Supply: 12V DC or PoE 802.3af
- Maximum Power Consumption: 9W
- Ingress Protection: IP67
- Impact Protection: IK08
- Audio: Built-in microphone with audio input and output
- Alarm Interface: 1 alarm input and 1 alarm output
- Protocols and Integration: ONVIF Profile S, G and T; ISAPI and SDK
- Dimensions (H x L x W): 57.4mm x 110mm x 110mm
- Weight: 0.385 kg
Key Features
- 6MP imaging with 3200 x 1800 resolution
- 4mm fixed lens for focused coverage in CCTV installations
- AcuSense human and vehicle classification to reduce nuisance alarms
- DarkFighter low-light imaging technology
- Up to 30m EXIR infrared night vision
- 120dB true WDR for scenes with challenging backlighting
- IP67 weather-resistant and IK08 vandal-resistant housing
- PoE support for combined network and power connection
- Built-in microphone and audio/alarm interfaces
- MicroSD recording support up to 512GB
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or data-cabling technician. PoE, network cabling and any associated mains-powered equipment must be installed in accordance with applicable electrical and communications requirements.
Applications
- Residential CCTV and security systems
- Commercial premises and retail surveillance
- Office, warehouse and industrial monitoring
- Building entrances, corridors and external covered areas
- Perimeter protection with human and vehicle filtering
Standards & Compliance
- AS/NZS 62368.1:2026: applicable safety standard for audio/video and information and communication technology equipment; product-specific conformity should be confirmed from the supplier or manufacturer declaration
Environmental Benefits
- H.265+ compression can reduce network bandwidth and video storage requirements compared with older compression formats
- PoE enables power and data over a single network cable, potentially reducing installation cabling and associated material use
- Durable IP67 and IK08 construction can extend service life and reduce replacement waste
- MicroSD and network recording options can reduce reliance on additional dedicated recording hardware in smaller installations
Warranty Information
Hikvision network cameras are commonly supplied in Australia with a 3-year warranty through authorised distributors. Hikvision’s extended 5-year Oceania warranty applies only to listed premium project-oriented product series, so eligibility for this camera should be confirmed at purchase.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors, subject to regional model and stock availability.
