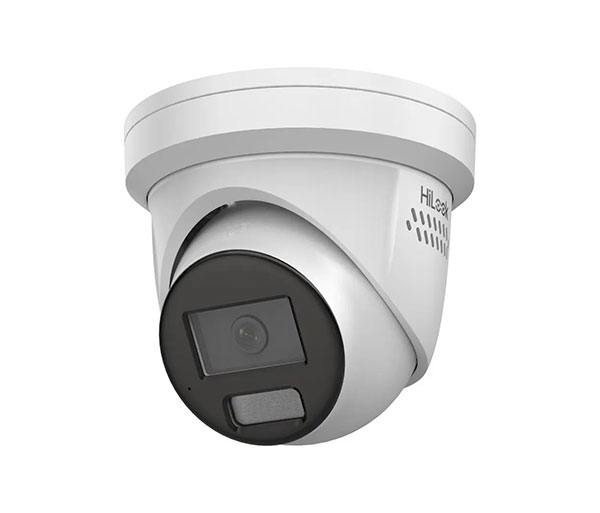

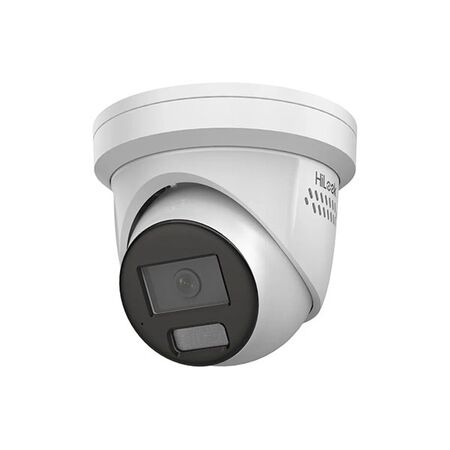

6MP All-In-One Turret Camera 2.8mm HiLook Hikvision
Hikvision HiLook all-in-one turret camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: HiLook 6MP Active Deterrence Turret Camera, HiLook IPC-T269H-MU/SL, 6MP PoE Turret Camera, Hikvision HiLook All-in-One CCTV Camera
Technical Specifications
- Model: IPC-T269H-MU/SL
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Maximum Resolution: 3200 x 1800 pixels
- Lens: Fixed 2.8mm M12 lens
- Field of View: 105° horizontal, 55° vertical, 127° diagonal
- Aperture: F1.6
- Minimum Illumination: 0.003 Lux colour; 0 Lux with IR or white light
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Frame Rate: Up to 25 fps at 3200 x 1800 in 50 Hz mode
- Smart Features: Human and vehicle target classification, motion detection and line-crossing detection
- Wide Dynamic Range: 120dB true WDR
- Supplementary Lighting: Smart IR and white light, up to 30m
- Audio: Built-in microphone, speaker and two-way audio
- Active Deterrence: Red and blue strobe light with audio alarm
- Local Storage: MicroSD card support up to 256GB
- Network Interface: 10/100 Mbps Ethernet with PoE
- Power Supply: 12V DC or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 8.4W DC or 9.7W PoE
- Operating Temperature: -30°C to 60°C
- Housing: Metal body with trim ring
- Ingress Protection: IP67
- EMC Approval: RCM to AS/NZS CISPR 32:2015
- Dimensions (H x L x W): 112.1mm x 138.3mm x 138.3mm
- Weight: 0.82 kg
Key Features
- 6MP image resolution for detailed surveillance footage
- Fixed 2.8mm wide-angle lens for broad area coverage
- All-in-one turret design with active red and blue strobe deterrence
- Built-in microphone, speaker and two-way audio
- Smart Dual-Light automatically switches between IR and white light
- Human and vehicle classification using deep learning
- 120dB true WDR for scenes with strong backlighting
- H.265+ compression reduces storage and bandwidth requirements
- PoE or 12V DC power options
- IP67-rated housing for outdoor dust and water resistance
Professional Installation Requirements
- Installation should be completed by a competent CCTV installer. PoE and 12V DC connections are low-voltage, but any mains-powered network equipment or power supply must be installed in accordance with applicable electrical regulations by a licensed electrician where required.
Applications
- Residential CCTV surveillance
- Retail and commercial security systems
- Perimeter and entry-point monitoring
- Industrial and warehouse security
- Driveway, car park and building exterior surveillance
- Active deterrence applications requiring strobe and audio warnings
Standards & Compliance
- RCM EMC approval to AS/NZS CISPR 32:2015
- Applicable CCTV system guidance: AS/NZS 62676.1.1:2020
- Applicable camera image-quality guidance: AS/NZS 62676.5:2020
- Ingress protection rated to IEC 60529:2013
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording storage requirements compared with older compression formats
- RoHS and WEEE environmental declarations support restriction of hazardous substances and responsible end-of-life handling
- Metal housing is durable and may support longer service life, reducing replacement waste
- PoE operation can simplify cabling and reduce the need for separate camera power infrastructure
Warranty Information
HiLook network cameras are commonly supplied in Australia with a 3-year manufacturer or distributor warranty, subject to the selling distributor's terms and proof of purchase.
Available Now
Available through Hikvision HiLook and authorised Australian security and CCTV distributors.
