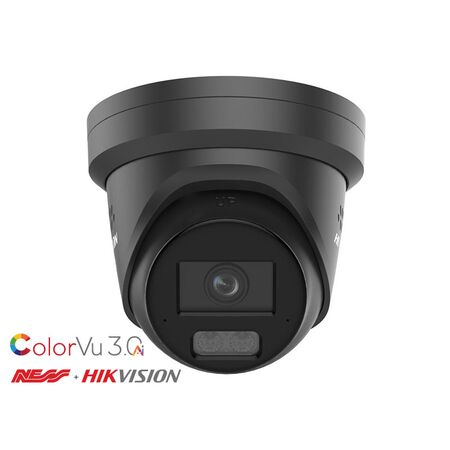

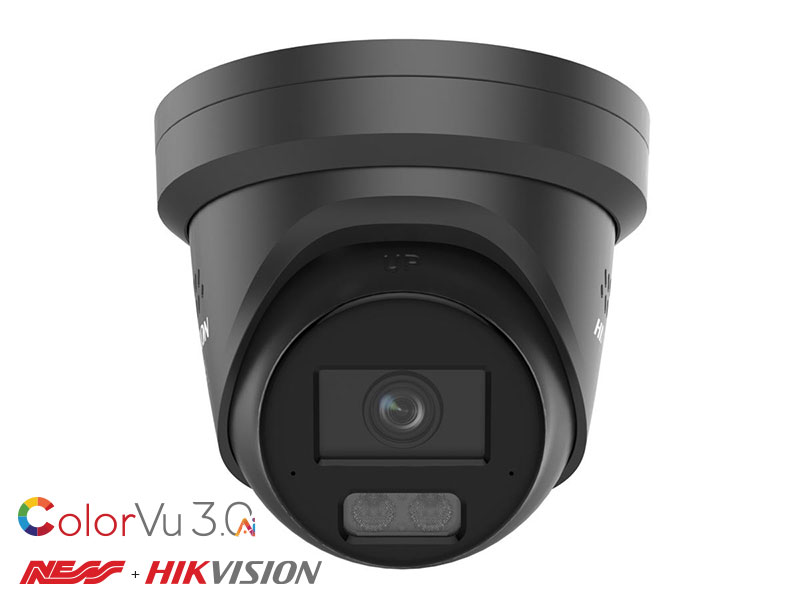

6MP ColorVu 3.0 Turret Camera 2.8mm Black Hikvision
Hikvision turret camera features 6MP resolution, ColorVu 3.0 imaging and a 2.8mm lens in black. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP ColorVu turret IP camera, Hikvision fixed turret surveillance camera, Hikvision DS-2CD2367G3-LIS2UY/SL Black
Technical Specifications
- Model: DS-2CD2367G3-LIS2UY/SL (2.8mm)(Black)
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3200 x 1800 pixels
- Lens: Fixed 2.8mm focal length
- Field of View: 108.8° horizontal, 56.4° vertical, 134.3° diagonal
- Aperture: F1.0
- Minimum Illumination: 0.0005 Lux in colour mode; 0 Lux with supplemental light
- Video Frame Rate: Up to 25 fps at 50 Hz or 30 fps at 60 Hz
- Video Compression: H.265, H.265+, H.264 and H.264+
- Wide Dynamic Range: 130 dB
- Supplemental Lighting: Smart Hybrid Light with IR and white light
- Supplemental Light Range: Up to 30 metres
- Network Interface: 10/100 Mbps self-adaptive RJ45 Ethernet
- Power: 12 VDC or IEEE 802.3at PoE, Class 4
- Maximum Power Consumption: 15.5 W via 12 VDC; 17 W via PoE
- Audio: Built-in arrayed dual microphone and speaker with two-way audio
- Storage: MicroSD, microSDHC or microSDXC up to 512 GB
- Housing Material: Metal
- Ingress Protection: IP67
- Anti-Corrosion Protection: NEMA 4X moderate protection
- Operating Temperature: -30°C to 60°C
- RCM Compliance: AS/NZS CISPR 32:2015
- Safety Approval: IEC 62368-1
- Dimensions (H x L x W): 115.4mm x 138.3mm x 138.3mm
- Weight: 0.82 kg
Key Features
- 6MP image resolution for detailed surveillance footage
- ColorVu 3.0 technology for 24/7 colour imaging in low-light conditions
- Fixed 2.8mm wide-angle lens for broad-area coverage
- Smart Hybrid Light combines infrared and white-light illumination
- Person and vehicle classification using deep-learning technology
- Built-in dual microphone, speaker and active strobe light alarm
- H.265+ compression helps reduce bandwidth and storage requirements
- 130 dB wide dynamic range for challenging backlit scenes
- IP67 protection for outdoor dust and water resistance
- Anti-corrosion construction suitable for moderately corrosive environments
- Supports PoE for simplified network installation
- Black housing option for discreet architectural installations
Professional Installation Requirements
- No mains connection is required because the camera operates from 12 VDC or PoE. Installation, network configuration and system commissioning should be completed by a suitably qualified security or electrical technician where required, in accordance with applicable wiring and CCTV installation requirements.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Office and warehouse monitoring
- Driveways, entrances and building perimeters
- Car parks and loading areas
- Outdoor areas requiring full-colour low-light surveillance
Standards & Compliance
- AS/NZS 62676.1.1:2020 for video surveillance system requirements
- AS/NZS CISPR 32:2015 referenced for RCM electromagnetic compatibility compliance
Environmental Benefits
- PoE operation can reduce cabling and simplify system power distribution
- H.265+ compression can reduce network bandwidth and recording-storage requirements
- Metal construction and anti-corrosion protection may extend service life and reduce replacement waste
- Declared RoHS and WEEE environmental compliance supports restriction and management of hazardous substances and electronic waste
Warranty Information
Warranty terms depend on the authorised Australian distribution channel. Hikvision camera products are commonly supplied with a three-year warranty in Australia; confirm the applicable warranty with the authorised distributor at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors; confirm current local stock before ordering.
