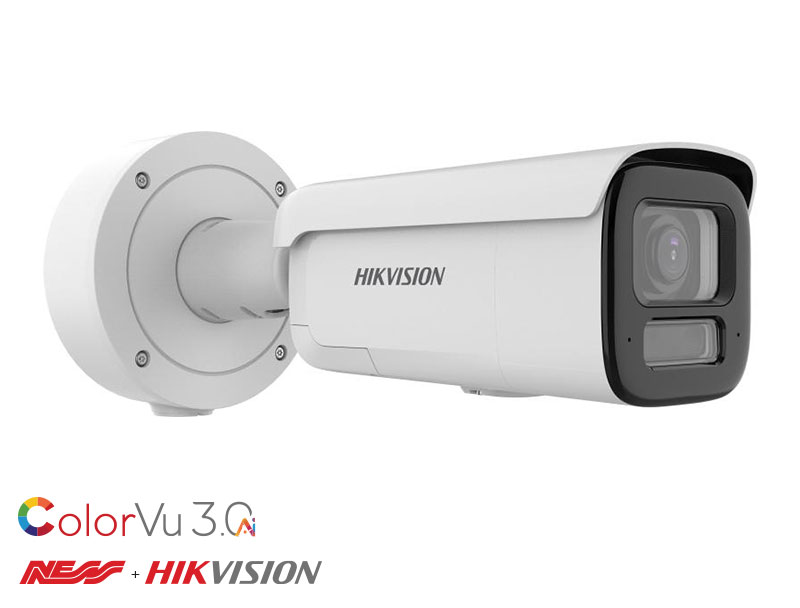

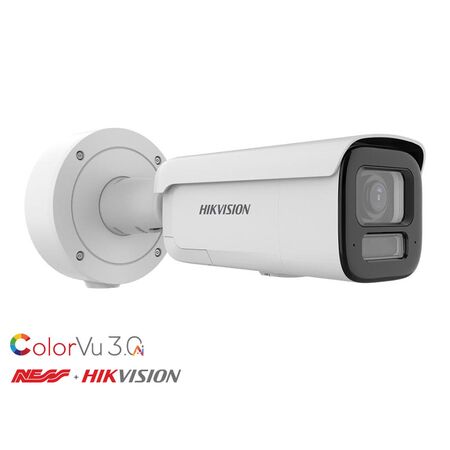

6MP ColorVu 3 Bullet Camera 2.7-13.5mm Hikvision
Hikvision bullet camera features 6MP resolution, ColorVu 3 imaging and a 2.7-13.5mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP ColorVu 3.0 Bullet Camera, DS-2CD3666G3-LIZSUY/SL, Smart Hybrid Light Varifocal Bullet Network Camera
Technical Specifications
- Model: DS-2CD3666G3-LIZSUY/SL (2.7-13.5mm)
- Image Sensor: 1/1.8-inch Progressive Scan CMOS
- Maximum Resolution: 3200 x 1800 pixels
- Lens: Motorised varifocal 2.7-13.5mm auto-iris lens
- Aperture: F1.2
- Field of View: Horizontal 112.3° to 41.2°; vertical 58.1° to 23.1°
- Minimum Illumination: 0.001 lux in colour mode; 0 lux with supplementary light
- Supplementary Lighting: IR and white light, up to 60m
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Dynamic Range: 130dB WDR
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Audio: Built-in dual microphone, speaker, audio input and audio output
- Alarm: 2 inputs and 2 outputs
- Network Interface: 10/100M RJ45 Ethernet
- Power: 12V DC, maximum 14.5W, or PoE+ IEEE 802.3at, maximum 18W
- Protection Rating: IP67 weather and dust resistance; IK10 impact resistance
- Anti-Corrosion Protection: NEMA 4X for -Y model
- Operating Temperature: -30°C to 60°C
- Material: Metal front cover, body and mounting bracket
- Manufacturer Certifications: CE-EMC, CE-LVD, CB, UL 62368-1 and CE-RoHS
- Dimensions (H x L x W): 95.7mm x 298mm x 97.9mm
- Weight: 1.555 kg
Key Features
- ColorVu 3.0 imaging for full-colour surveillance in low-light conditions
- HIK AI-ISP image processing for noise reduction and improved image clarity
- Motorised 2.7-13.5mm varifocal lens for adjustable framing
- Smart Hybrid Light combining infrared and white illumination
- AcuSense 3.0 human and vehicle classification
- Active deterrence with strobe light and audible warning
- Built-in two-way audio with dual microphone and speaker
- 130dB wide dynamic range for high-contrast scenes
- Face capture, people counting and perimeter protection analytics
- Suitable for outdoor installations with IP67 and IK10 protection
Professional Installation Requirements
- Installation should be performed by a qualified CCTV or security technician. Configure the camera, PoE network, storage, audio, alarm and deterrence functions in accordance with the manufacturer’s instructions and applicable Australian electrical and security installation requirements.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Industrial and warehouse monitoring
- Perimeter protection and restricted-area monitoring
- Car parks, entrances and loading areas
- Outdoor surveillance requiring adjustable focal length and low-light colour imaging
Standards & Compliance
- AS/NZS 62676.1.1:2020 is the applicable Australian/New Zealand standard for general video surveillance system requirements; specific product compliance is not stated in the Hikvision datasheet
- AS/NZS 62676.5:2020 may apply to camera-device data and image-quality performance within a complete video surveillance system
- Australian electrical installations and PoE infrastructure should be installed in accordance with applicable requirements, including AS/NZS 3000 where relevant
Environmental Benefits
- CE-RoHS declaration supports restriction of hazardous substances in the product
- PoE+ operation allows power and data to be delivered through a single network cable, reducing cabling requirements
- IP67, IK10 and NEMA 4X protection can extend service life and reduce premature replacement in suitable environments
- Hybrid lighting activates supplementary illumination as required rather than relying exclusively on continuous high-output lighting
Warranty Information
Warranty is subject to the applicable Hikvision Australia contract and purchase terms. Hikvision Australia advertises a five-year warranty for specified premium project-oriented product series; inclusion of this camera model should be confirmed with the authorised distributor.
Available Now
Available through Hikvision and authorised Australian security and CCTV distributors.
