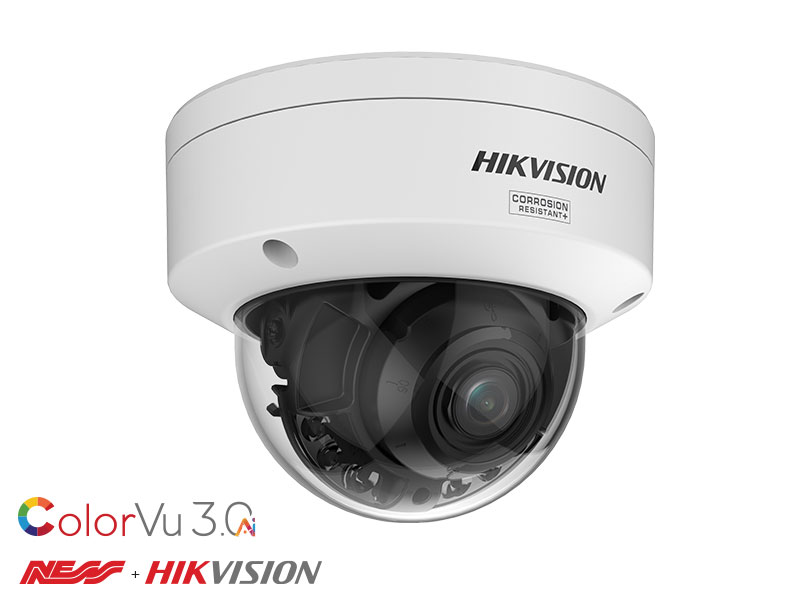

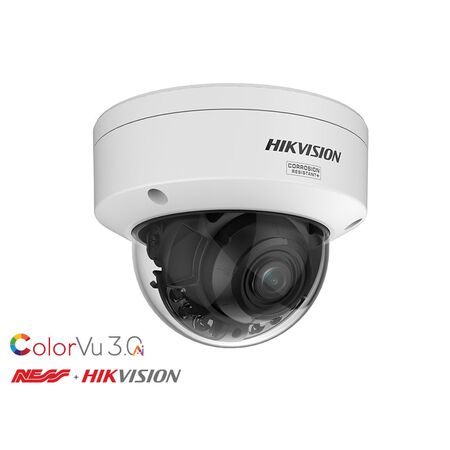

6MP ColorVu 3 Dome Camera 2.7-13.5mm Hikvision
Hikvision dome camera features 6MP resolution, ColorVu 3 imaging and a 2.7-13.5mm lens. Ideal for CCTV surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD3767G3T-LIZSUY, 6MP ColorVu 3.0 Dome Camera, IP PoE Varifocal Dome Camera
Technical Specifications
- Resolution: 6MP, 3200 x 1800 pixels
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Motorised 2.7–13.5mm varifocal lens
- Horizontal Field of View: 112.3° to 41.2°
- Vertical Field of View: 58.1° to 23.1°
- Aperture: Maximum F1.2
- Minimum Illumination: 0.001 lux in colour mode; 0 lux with white light
- Video Frame Rate: Up to 25fps at 50Hz or 30fps at 60Hz
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Wide Dynamic Range: 130dB
- Supplementary Lighting: IR and white light, up to 40m
- Network Interface: 10/100M RJ45 Ethernet
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Power: 12VDC or IEEE 802.3at PoE, maximum 18W
- Protection Rating: IP67 and IK10
- Anti-Corrosion Rating: NEMA 4X
- Operating Temperature: -30°C to 60°C
- Audio: Dual built-in microphones and built-in speaker
- Connectivity: ONVIF Profile S, T, G and M
- Dimensions (H x L x W): 140.4mm x 155mm x 155mm
- Weight: 1.25 kg
Key Features
- 6MP ColorVu 3.0 imaging for full-colour surveillance in low-light conditions
- Motorised 2.7–13.5mm varifocal lens with autofocus
- 130dB wide dynamic range for scenes with strong backlighting
- IR and white-light supplementary illumination up to 40m
- AI-supported human and vehicle target classification
- Perimeter protection with line-crossing, intrusion and region-based detection
- Face capture and people-counting functions
- Built-in microSD recording support up to 512GB
- Two-way audio with built-in microphones and speaker
- IP67 weather resistance and IK10 vandal resistance
- NEMA 4X anti-corrosion protection
- Supports PoE for simplified network installation
Professional Installation Requirements
- Installation by a qualified CCTV/security installer is recommended for correct mounting, network cabling, PoE power delivery, camera positioning, configuration and compliance with applicable electrical and customer-cabling requirements.
Applications
- Commercial and industrial CCTV surveillance
- Residential security monitoring
- Retail, warehouse and logistics surveillance
- Building entrances, car parks and perimeter monitoring
- Low-light and colour night-vision security installations
- Network video recorder and VMS-based surveillance systems
Standards & Compliance
- Applicable CCTV camera-device standard: AS/NZS 62676.5:2020
- Applicable video surveillance system requirements: AS/NZS 62676.1.1:2020 and AS/NZS 62676.1.2:2020
- Network cabling installations may require AS/CA S009:2020 and electrical installations may require AS/NZS 3000:2018; confirm project requirements with the installer
Environmental Benefits
- H.265 and H.265+ compression can reduce network bandwidth and video storage requirements compared with older compression formats
- RoHS, WEEE and REACH environmental declarations support reduced use of restricted substances and responsible end-of-life handling
- IP67, IK10 and NEMA 4X protection can extend service life and reduce replacement waste in demanding installations
- MicroSD recording and efficient network streaming can reduce reliance on higher-capacity storage hardware
Warranty Information
Hikvision network cameras supplied through Australian authorised distribution channels are commonly covered by a 3-year manufacturer warranty, subject to the applicable regional RMA policy and purchase channel. Certain Hikvision Ultra Series project-oriented products may qualify for a 5-year warranty; confirm eligibility for the supplied Australian model.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distribution channels.
