Trade Discount 25%

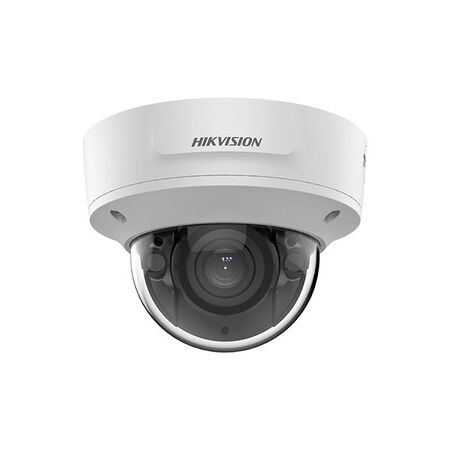

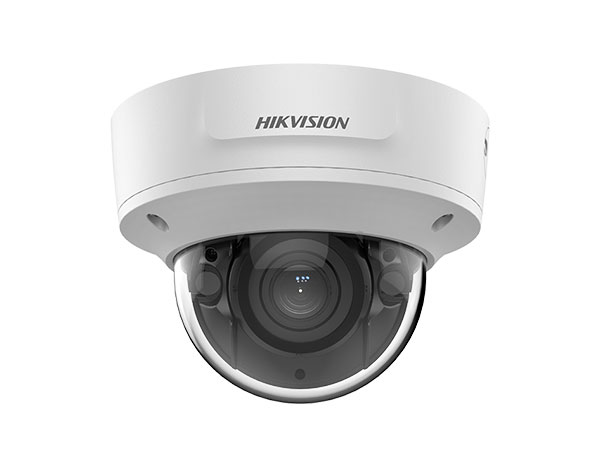

6MP Dome Camera 2.8-12mm Hikvision
Hikvision dome camera features 6MP resolution and a 2.8-12mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP IR Dome Camera, Hikvision DarkFighter Varifocal Dome, 6MP IP CCTV Dome Camera
Technical Specifications
- Resolution: 6MP, maximum 3072 × 2048
- Image Sensor: 1/2.4-inch progressive scan CMOS
- Lens: 2.8–12mm motorised varifocal lens with autofocus
- Frame Rate: Up to 20 fps at 3072 × 2048; up to 30 fps at lower resolutions
- Video Compression: H.265, H.265+, H.264 and H.264+
- Wide Dynamic Range: 120dB WDR
- Night Vision: Up to 30m IR range
- Field of View: 114° to 34° horizontal
- Storage: MicroSD/SDHC/SDXC slot, up to 128GB
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power Supply: 12V DC or PoE IEEE 802.3af
- Maximum Power Consumption: 10.5W at 12V DC or 12.5W via PoE
- Protection Rating: IP67 weather resistance and IK10 impact resistance
- Operating Temperature: -30°C to 60°C
- Housing Material: Metal front cover and base with plastic dome bubble
- Audio and Alarm: Audio input/output, alarm input/output and built-in microphone support
- Manufacturer Model Match: DS-2CD2765G0-IZS (2.8–12mm)
- Source Note: Manufacturer datasheet specifies 6MP resolution, 2.8–12mm lens, IP/IK protection and dimensions. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000039/M000000205/SM000058686/Data_Sheet/DS-2CD2765G0-IZS_Datasheet_V5.6.0_20220609.pdf?utm_source=openai))
- Dimensions (H x L x W): 133.2mm x 153.4mm x 153.4mm
- Weight: 1.3 kg
Key Features
- 6MP high-definition network video output
- Motorised 2.8–12mm varifocal lens for adjustable viewing angle
- DarkFighter low-light imaging technology
- 120dB WDR for scenes with strong backlighting
- Up to 30m infrared night vision
- H.265+ compression to reduce bandwidth and storage requirements
- IP67-rated outdoor protection
- IK10 vandal-resistant construction
- PoE or 12V DC power options
- ONVIF Profile S and Profile G support
- Line crossing, intrusion, face and scene-change detection
- Local recording through a microSD card slot
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV/security technician. PoE or low-voltage connection, network configuration, mounting and system commissioning should follow the manufacturer's instructions and applicable Australian requirements. Mains-powered network equipment must be installed in accordance with relevant electrical regulations.
Applications
- Commercial and industrial CCTV systems
- Retail, office and warehouse surveillance
- Building entrances and perimeter monitoring
- Car parks and loading areas
- Outdoor security installations requiring vandal-resistant housing
- Integration with Hikvision NVRs and compatible ONVIF video management systems
Standards & Compliance
- Applicable CCTV system standard: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications
- CCTV installation work should also consider AS/NZS 2201 and applicable state or territory licensing requirements
Environmental Benefits
- H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
- IP67 and IK10 protection can extend service life in outdoor and exposed installations, reducing replacement waste
- PoE operation can simplify cabling and reduce the need for separate local power supplies
- Long-term local recording and network integration can reduce reliance on additional recording hardware
Warranty Information
A 3-year limited manufacturer warranty is commonly listed for the DS-2CD2765G0-IZS model. Australian warranty coverage depends on purchase through an authorised Hikvision distribution channel; confirm the applicable regional terms before supply. ([av-iq.com](https://www.av-iq.com/avcat/ctl1642/index.cfm?manufacturer=hikvision-digital-technology&product=ds-2cd2765g0-izs&utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors. Confirm current regional stock and Australian firmware availability with the distributor.
