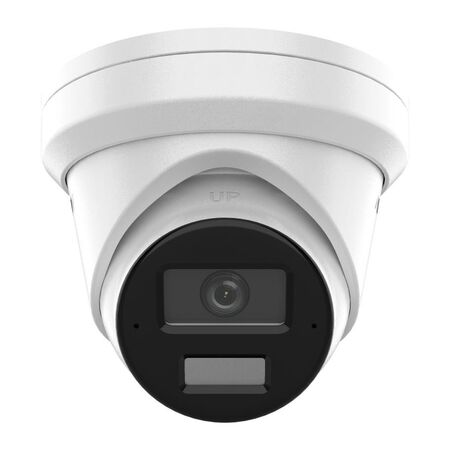

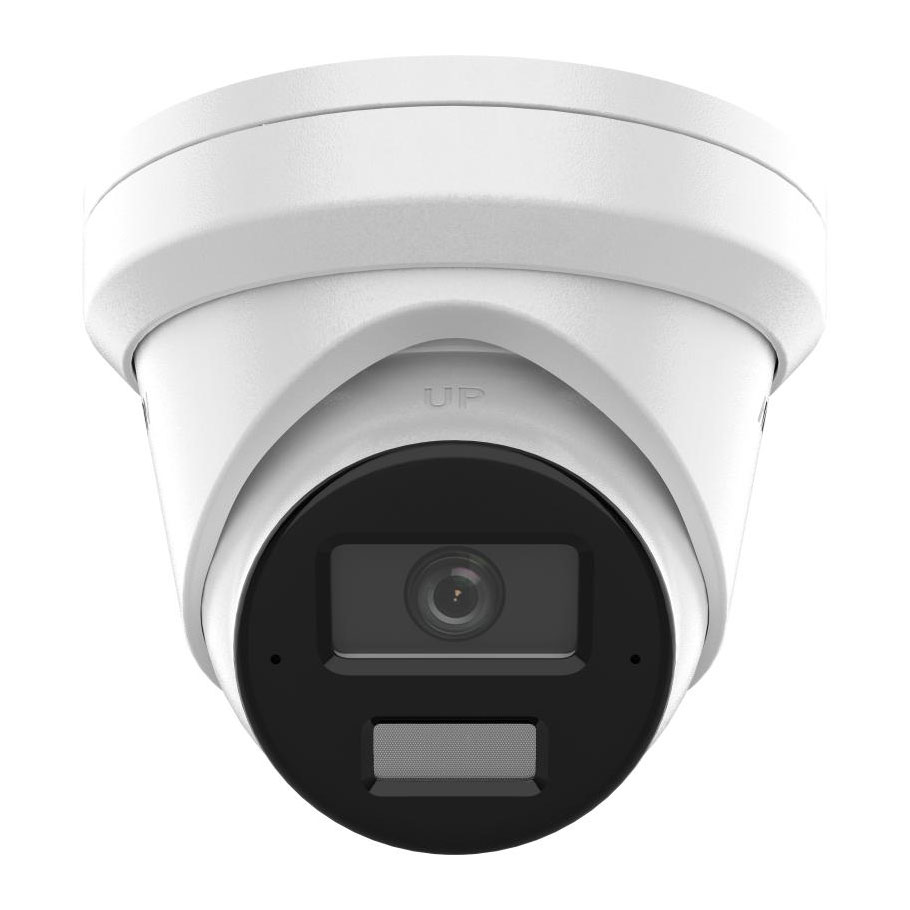

6MP Turret Camera White Label 2.8mm HiLook Hikvision
Hikvision HiLook white label turret camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision HIW-2CD2363G0IU2, DS-2CD2363G0-IU, 6MP IP Turret Camera, HiLook 6MP Turret Camera
Technical Specifications
- Resolution: 6 MP, 3072 × 2048 at up to 20 fps
- Image Sensor: 1/2.9-inch progressive scan CMOS
- Lens: Fixed 2.8mm lens, F2.0 aperture
- Field of View: 97° horizontal, 63° vertical, 120° diagonal
- Video Compression: H.265+, H.265, H.264+ and H.264
- Wide Dynamic Range: 120 dB
- Night Vision: EXIR infrared illumination up to 30 m
- Storage: Built-in microSD/SDHC/SDXC card slot, up to 128 GB
- Audio: Built-in microphone with environmental noise filtering
- Network Interface: 10/100 Mbps Ethernet
- Power: 12 VDC or PoE, IEEE 802.3af Class 3, maximum 7.5 W
- Ingress Protection: IP67
- Camera Material: Metal housing
- Operating Temperature: -30°C to 60°C
- Compliance: AS/NZS CISPR 32:2015 EMC reference listed for the DS-2CD2363G0-IU series
- Dimensions (H x L x W): 95.9mm x 127.3mm x 127.3mm
- Weight: 0.635 kg
Key Features
- 6MP high-definition imaging for detailed CCTV footage
- Wide-angle 2.8mm fixed lens for broad scene coverage
- H.265+ compression reduces bandwidth and storage requirements
- 120dB true WDR improves detail in high-contrast lighting
- EXIR infrared night vision with up to 30m range
- Built-in microphone for audio recording
- Human and vehicle target classification
- Line-crossing, intrusion and face-detection functions
- MicroSD recording support up to 128GB
- PoE connectivity simplifies installation
- IP67-rated housing for outdoor use
Professional Installation Requirements
- Installation should be performed by a suitably qualified CCTV or security-system installer. The camera uses low-voltage 12VDC or PoE power; any connected mains-powered equipment or power supply must be installed in accordance with applicable electrical requirements.
Applications
- Residential CCTV systems
- Small commercial and retail premises
- Entrances, driveways and car parks
- Warehouses and light industrial sites
- Outdoor perimeter and access monitoring
- PoE-based Hikvision or compatible ONVIF surveillance systems
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC reference listed for the DS-2CD2363G0-IU series
Environmental Benefits
- H.265+ compression can reduce network bandwidth and video-storage requirements compared with older compression formats
- RoHS-related restricted-substance compliance is listed for the underlying Hikvision camera series
- Metal housing supports product durability and may be recyclable through appropriate electronic-waste or metal-recycling channels
- PoE connectivity can reduce cabling and power-adaptor requirements in compatible installations
Warranty Information
Australian Hikvision and HiLook network cameras are commonly supplied with a 3-year manufacturer or back-to-base warranty, subject to authorised-channel purchase and the specific seller's terms. The Hikvision RMA policy lists HiLook products with a 36-month default warranty. ([secusafe.com.au](https://secusafe.com.au/pages/warranty-and-rma-policy?utm_source=openai))
Available Now
Available through Hikvision and HiLook authorised Australian distributors, subject to current model and white-label stock availability.
