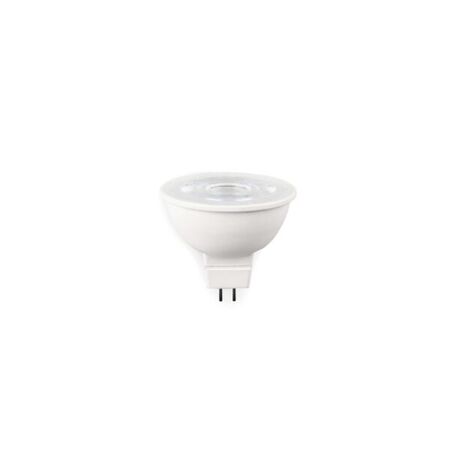

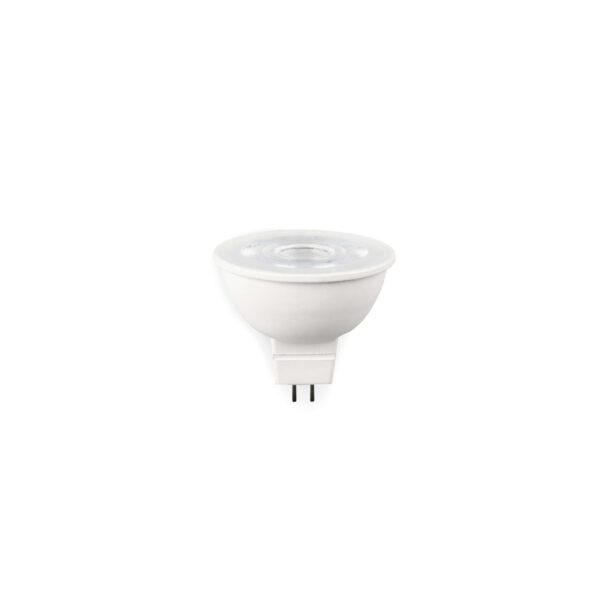

6W MR16 LED Lamp | 500 Lumens Output | 36° Beam Angle | Frosted Diffuser | by atom
The 6W MR16 LED Lamp delivers a powerful 500 lumens output with a fixed 36° beam angle, making it perfect for accent and general lighting in both residential and commercial spaces. With a high colour rendering index (CRI) of over 80, it ensures accurate color representation, while the frosted polycarbonate diffuser provides soft light distribution. Designed for 12V AC/DC compatibility, this non-dimmable lamp is ideal for various indoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 6W MR16 LED Downlight, 6 Watt MR16 LED Lamp, MR16 LED Spotlight, GU5.3 LED Lamp, Non-Dimmable MR16 LED
Technical Specifications
- Total System Efficiency: 83 lm/W
- Input Voltage: 12V AC/DC
- Power Factor: 0.5
- Colour Temperature Options: 3000K (Warm White), 4000K (Cool White), 5700K (Daylight)
- Beam Angle: 36°
- CRI: >80
- LED Package: 2835
- Globe Base: GU5.3
- IP Rating: IP20
- Working Temperature Range: -20 to 40 °C
- Switch Type: Inline
- Dimmable: No
- Driver Type: Fixed output (not included)
- Product Design Life: 10 years at 4 hours daily use
- Dimensions (H x L x W): 50mm x 55mm x 50mm
- Weight: 0.1 kg
Key Features
- 6W power consumption with 500 lumens output
- Fixed beam angle of 36° for focused lighting
- High colour rendering index (CRI) >80 for accurate colour representation
- Frosted polycarbonate diffuser for soft light distribution
- IP20 rated suitable for indoor use
- Non-dimmable with fixed output driver
- Compatible with 12V AC/DC input voltage
- Long LED lifetime of 15,000 hours based on TM-21
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper connection to 12V AC/DC power supply.
Applications
- Residential lighting: accent and general lighting
- Commercial lighting: retail, hospitality, offices
- Display lighting: galleries, museums, showcases
Standards & Compliance
- Complies with AS/NZS 62560 for self-ballasted LED lamps
- Meets IEC/TR 62778 for photobiological safety of lamps
- Complies with AS CISPR 15 for radio disturbance characteristics
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime reduces waste and replacement frequency
- Low heat emission contributes to lower cooling energy use
Warranty Information
VIP warranty of 2 years return to base (RTB) for registered users; standard domestic use warranty of 1 year RTB or 500 operating hours, whichever occurs first.
Available Now
The Atom 6W MR16 LED Lamp 36° Downlight Non-Dimmable is available for immediate purchase, ideal for residential and commercial indoor lighting applications.
