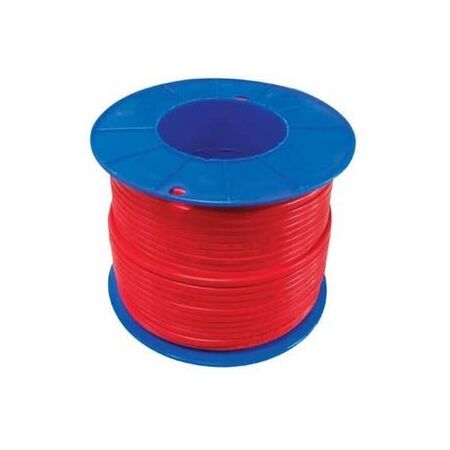

Fire Control Cable 7 0.50 2 Core LSZH Red 100m Electra
Electra Cables Fire Control features 7/0.50mm 2C, red sheath, roll of 100m. Ideal for fire detection and control panel wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fire Alarm Cable, Fire Control Cable, LSZH Fire Cable, Evacuation System Cable
Technical Specifications
- Conductor: 7 strands of 0.50mm diameter
- Number of cores: 2
- Voltage rating: 250V
- Temperature rating: -15°C to 75°C
- Cable type: Light duty fire control
- Sheath colour: Red
- Low Smoke Zero Halogen (LSZH)
- Dimensions (H x L x W): 10mm x 100000mm x 10mm
- Weight: 2.5 kg
Key Features
- Light duty fire control cable designed for fire alarm and evacuation systems
- Low Smoke Zero Halogen (LSZH) for enhanced safety
- Operating voltage of 250 Volts
- Operating temperature range from -15°C to 75°C
Professional Installation Requirements
- Installation should be performed by a licensed electrician familiar with fire alarm and evacuation system wiring standards.
Applications
- Fire Alarm Systems
- Smoke Detectors
- Speakers for Evacuation Systems
- Modules and Evacuation Systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low Smoke Zero Halogen construction reduces toxic emissions during fire incidents
- Improves safety for occupants and emergency responders
Warranty Information
Standard manufacturer warranty applies. Please refer to Electra Cables for specific warranty details.
Available Now
The Electra Cables Cable Fire Control 7/0.50 2 Core Light Duty 100M Red is available for immediate purchase, ideal for fire alarm and evacuation system installations.
