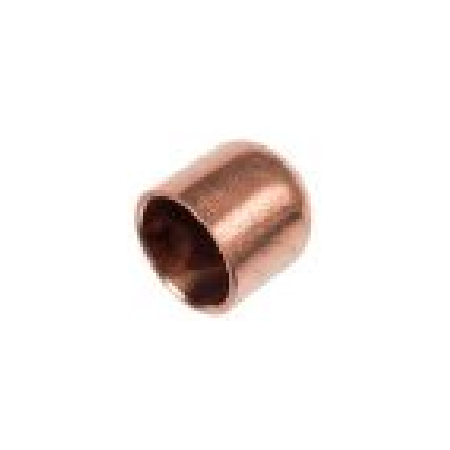

7/8 Cap XHP High Pressure Copper End Cap | 130 Bar Rating | CuFe2p Alloy | by Aspen Pumps
The 7/8 Cap XHP is a high pressure copper end cap designed for refrigeration systems, featuring a robust 130 bar pressure rating and made from CuFe2p copper iron alloy for superior corrosion resistance. Ideal for industrial and commercial HVAC applications, this fitting ensures safety and compliance with TüV standards, making it a reliable choice for high pressure refrigeration using R744 refrigerant.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 7/8 Cap XHP High Pressure Copper End Cap | 130 Bar Rating | CuFe2p Alloy | by Aspen Pumps
Brand: Aspen Pumps
SKU: 127-129301-78
Alternatively Known As: High Pressure Copper End Cap, SANHA 130 bar Copper Fitting End Cap, Refrigeration Copper Cap Fitting
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification: Yes
- Dimensions (H x L x W): 22mm x 22mm x 22mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to TüV standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method
- Magnetic identification for easy verification
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber experienced with high pressure refrigeration systems is required to ensure safety and compliance.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial and commercial HVAC systems
- Systems requiring high corrosion resistance copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Warranty as per Aspen Pumps standard terms and conditions.
Available Now
The Aspen Pumps 7/8 Cap XHP high pressure copper end cap is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
